Installing System Components 67

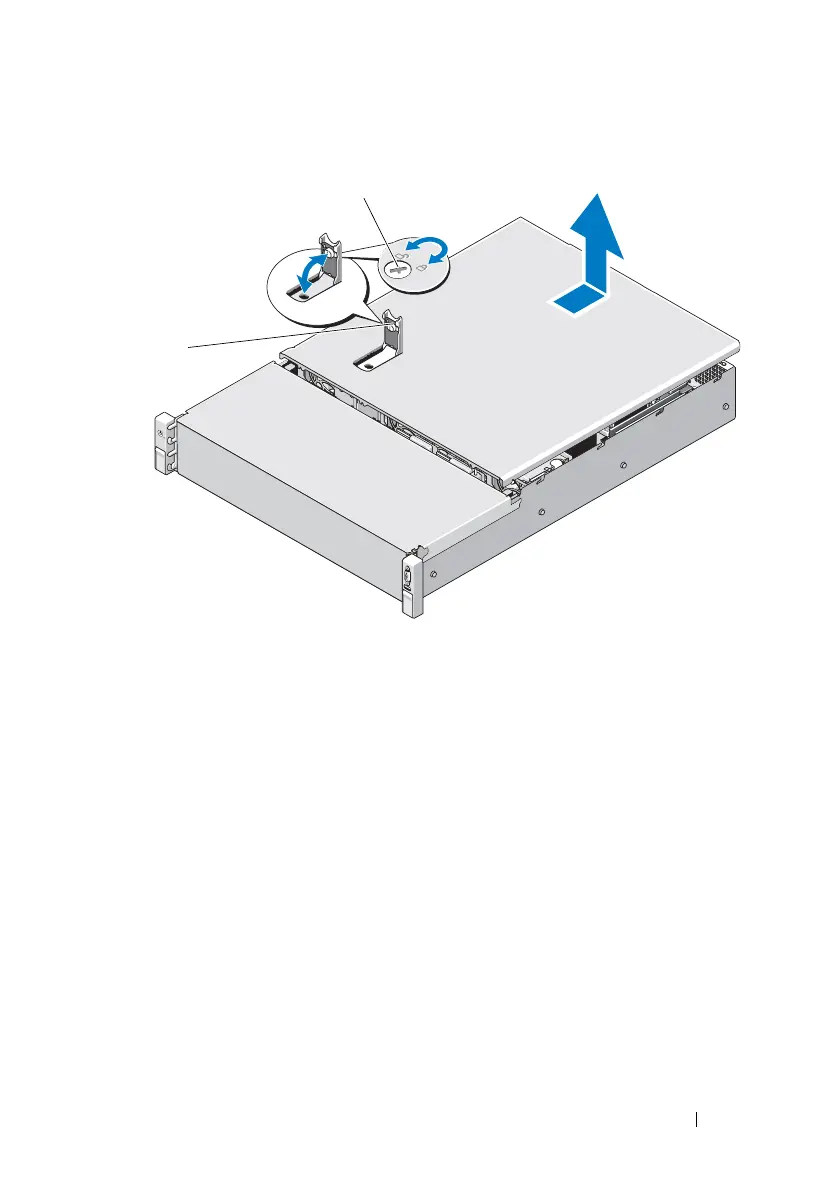

Figure 3-3. Removing and Replacing the System Cover
Closing the System
1 Lift the latch on the system cover.
2 Place the cover onto the chassis and offset it slightly back so that the two
hooks on the back edge of the cover fit the corresponding tabs on the back
edge of the chassis. See Figure 3-3.
3 Slide the cover towards the front of the chassis and press down the latch.
4 Rotate the latch release lock in the clockwise direction to secure the cover.
5 Reconnect the system and peripherals to their electrical outlets, and turn
on the system.
1 system cover latch 2 latch release lock
