Dell PowerVault TL2000 Attachment Instructions

iSCSI for TL-Series Tape Libraries

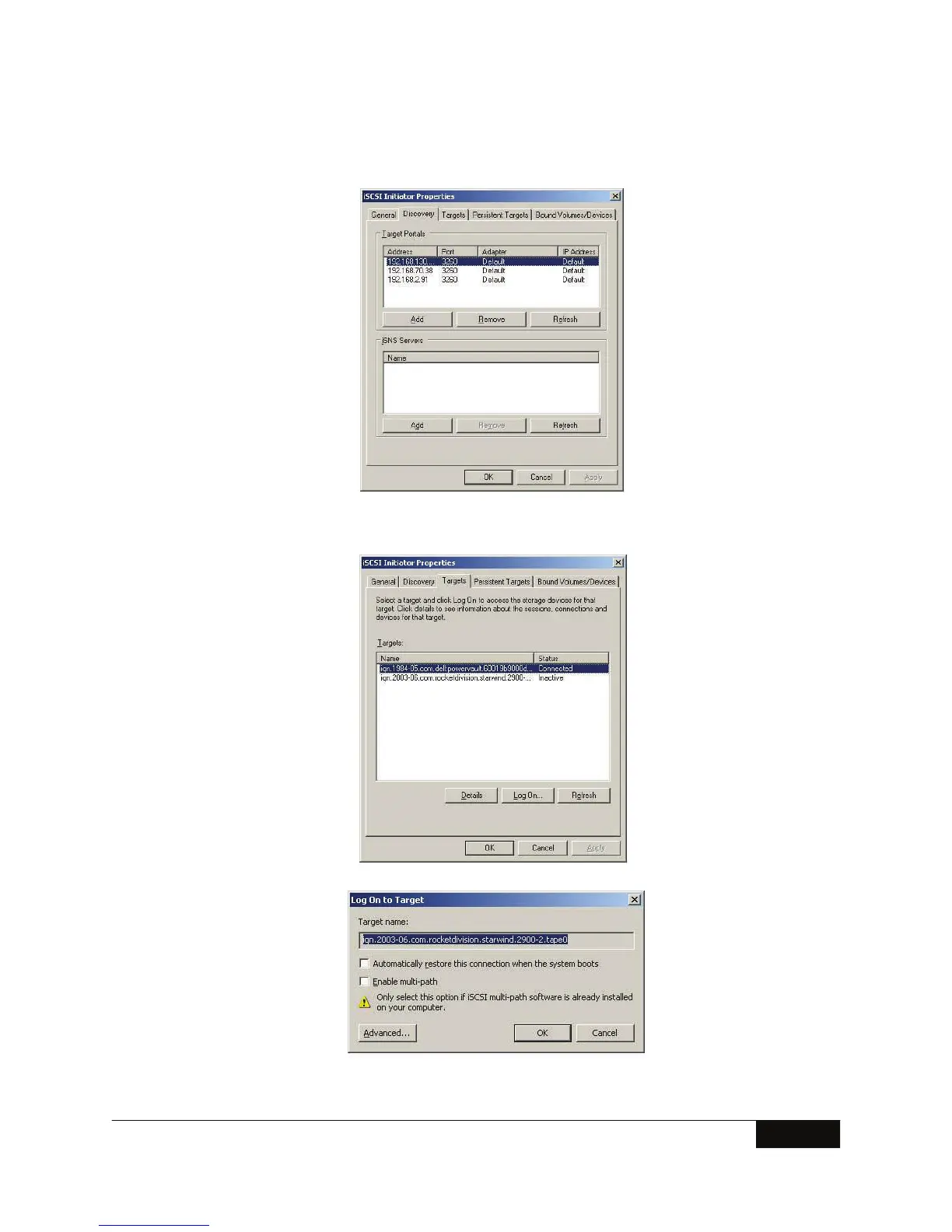

On the Discovery tab, the IP address of the iSCSI target needs to be entered.
Figure 2 : IP Address
On the Targets tab, the available iSCSI targets are displayed and available for log-on.
Figure 3 : iSCSI Targets
Figure 4 : Target Log On
6
SEPTEMBER 2008

Dell PowerVault TL2000 Specifications

General

Number of Drives	1 or 2
Number of Slots	24
Type	Tape Library
Drive Types	LTO-4, LTO-5, LTO-6
Interface	SAS, Fibre Channel
Dimensions	8.68 in (22.05 cm) x 19.0 in (48.26 cm) x 30.0 in (76.2 cm)
Tape Drive Compatibility	LTO-4, LTO-5, LTO-6
Power Supply	Redundant power supplies optional
Operating Temperature	50°F to 95°F (10°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
