Steps

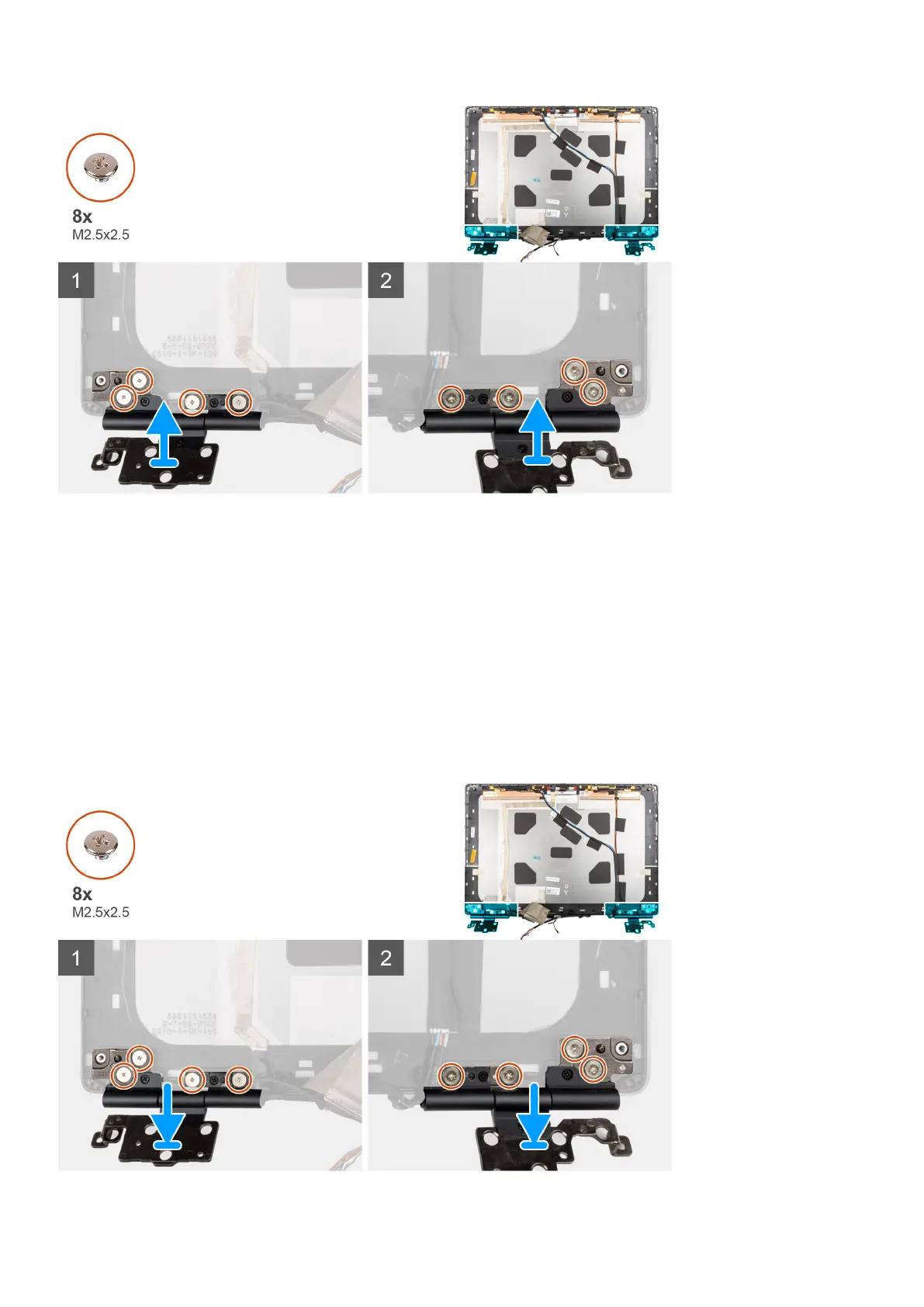

1. Remove the eight (M2.5x2.5) screws that secure the display hinges to the display assembly.
2. Remove the display hinges.
Installing the display hinge (non-touch)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the display hinge and provides a visual representation of the installation procedure.
Removing and installing components
103
