Dell Precision 7760 - SD Card Reader; Removing SD Card Reader

Steps

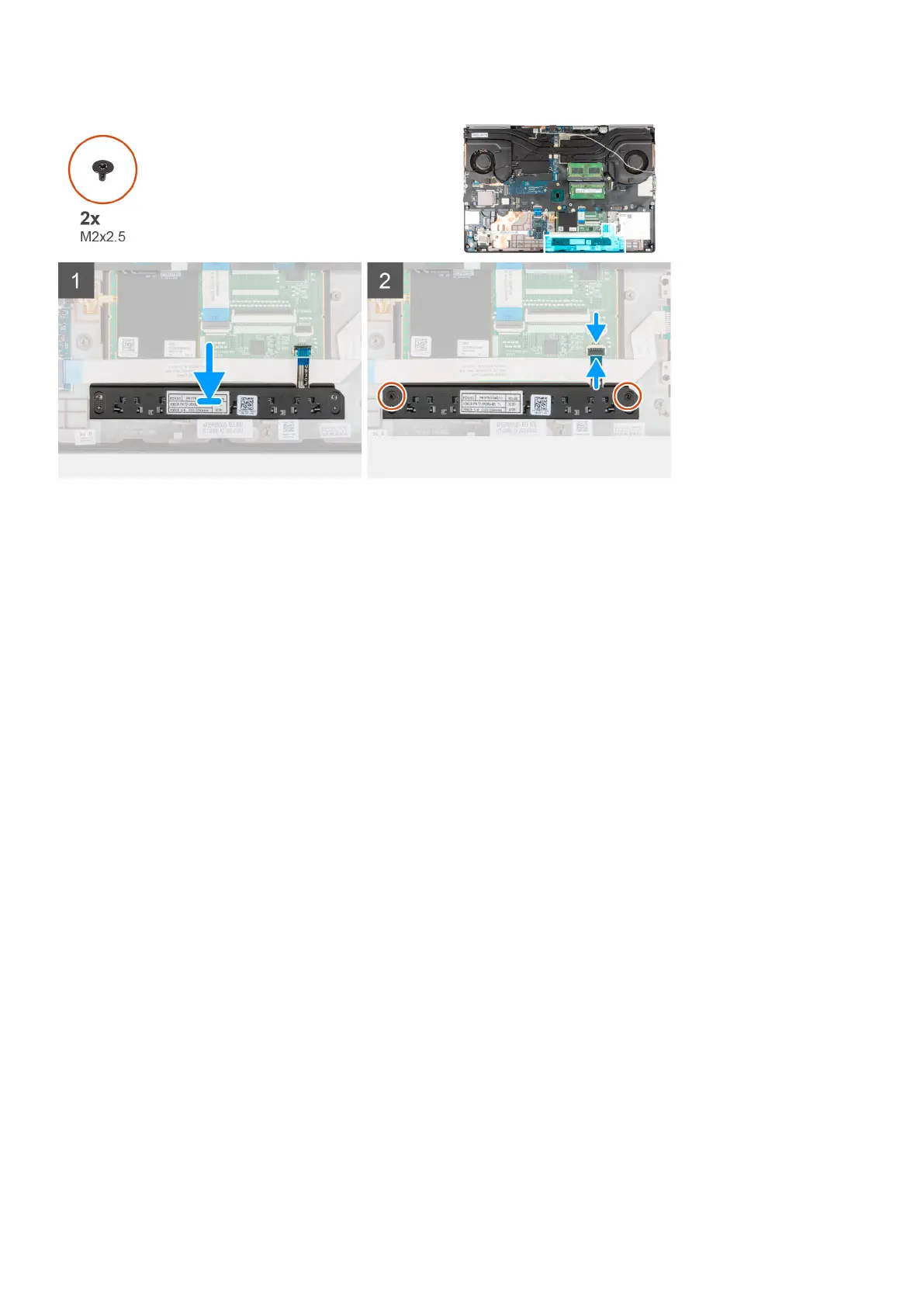

1. Place the touchpad buttons into its slot in the palmrest.
2. Replace the two (M2x2.5) screws to secure the touchpad buttons to the palmrest.
3. Connect the touchpad buttons FPC to the connector in the touchpad.
4. For models shipped with smart card reader, connect the smart card reader FFC to the USH daughter board and adhere the
smart card reader FFC on the touchpad.
Next steps
1. Install the inner frame.
2. Install the WWAN card.
3. Install the WLAN card.
4. Install the primary M.2 SSD.
5. Install the battery.
6. Install the base cover.
7. Install the SD card.
8. Follow the procedure in after working inside your computer.
SD card reader
Removing SD card reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the WLAN card.
6. Remove the WWAN card.
7. Remove the primary M.2 SSD.
8. Remove the keyboard lattice.
9. Remove the keyboard.
10. Remove the inner frame.
54
Removing and installing components
