Dell Precision 7760 - Primary Memory Module; Removing the Primary Memory Module

Primary memory module
Removing the primary memory module
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the keyoard lattice.
6. Remove the keyboard.
About this task

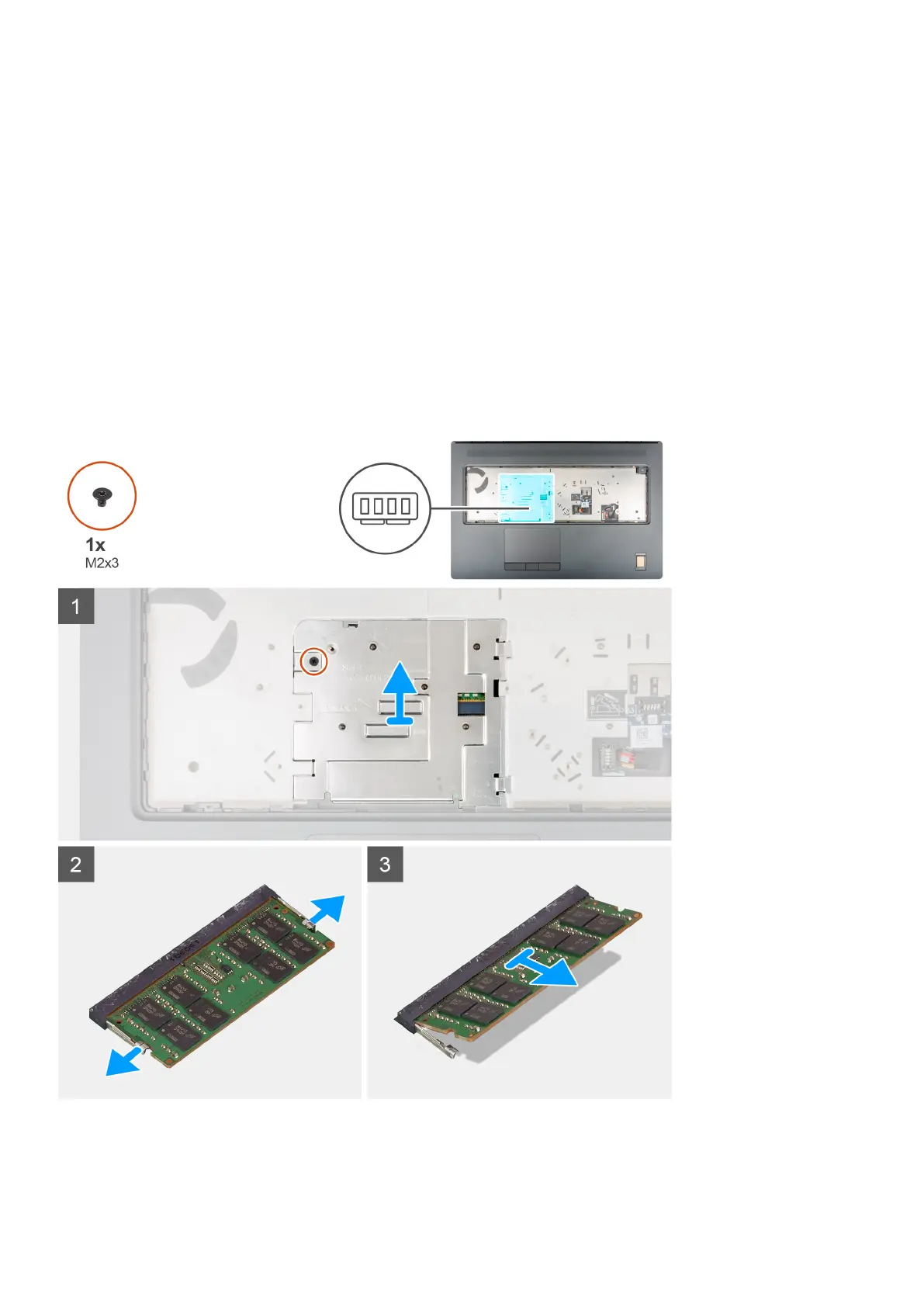

The figure indicates the location of the primary memory module and provides a visual representation of the removal procedure.
Steps
1. Remove the (M2x3) screw that secures the memory shield in place.
2. Slide the memory shield towards the right side of the computer and lift the shield from the memory module.
