Dell Precision 7760 - GPU Card; Removing the GPU Card

GPU card
Removing the GPU card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the secondary M.2 SSD.
4. Remove the base cover.
5. Remove the battery.
6. Remove the SIM card.
7. Remove the secondary memory.
8. Remove the WLAN card.
9. Remove the WWAN card.
10. Remove the primary M.2 SSD.
11. Remove the keyboard lattice.
12. Remove the keyboard.
13. Remove the GPU power cable.
14. Remove the primary memory.
15. Remove the heat-sink assembly.
16. Remove the inner frame.
About this task

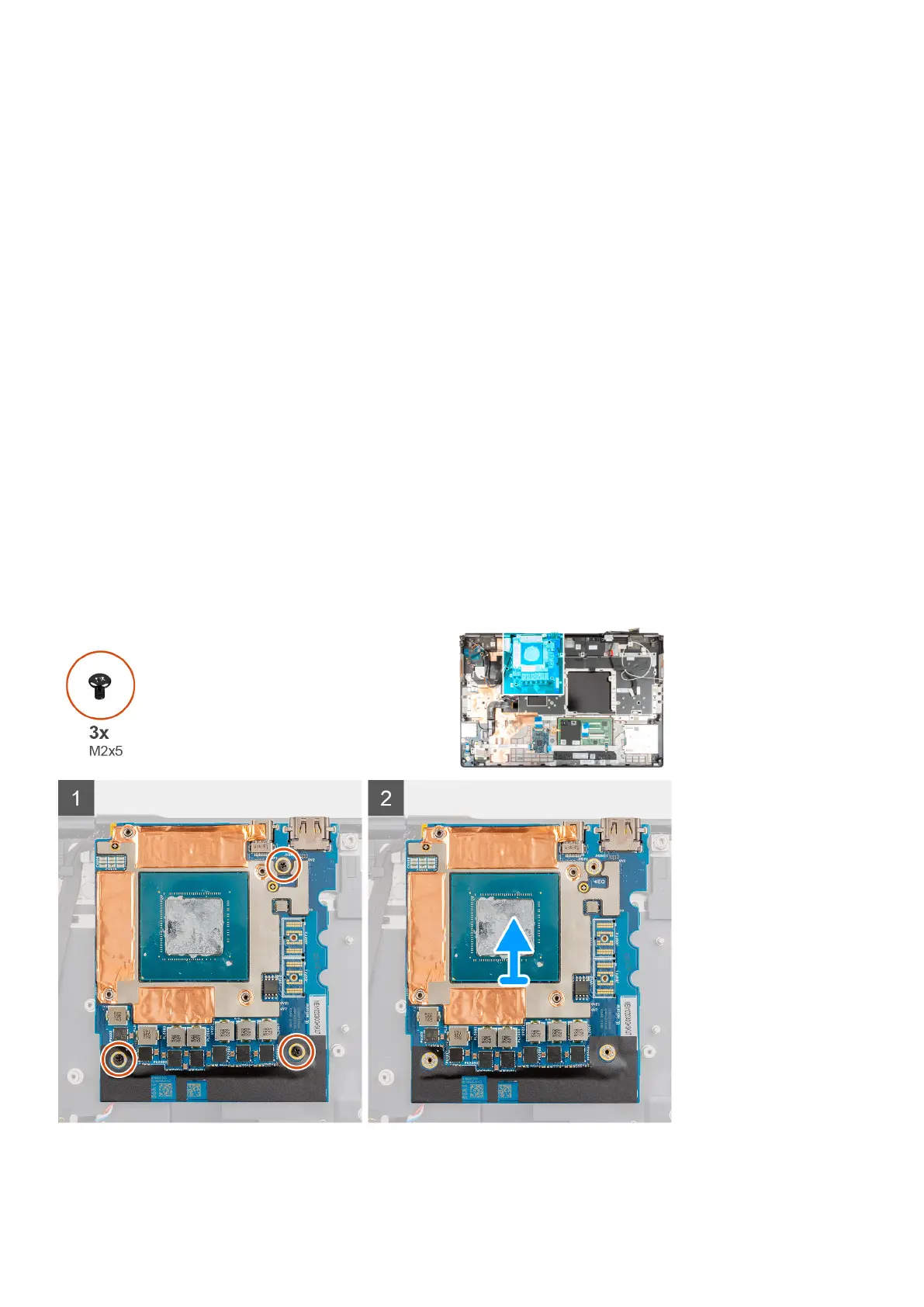

The figure indicates the location of the GPU card and provides a visual representation of the removal procedure.
