Steps

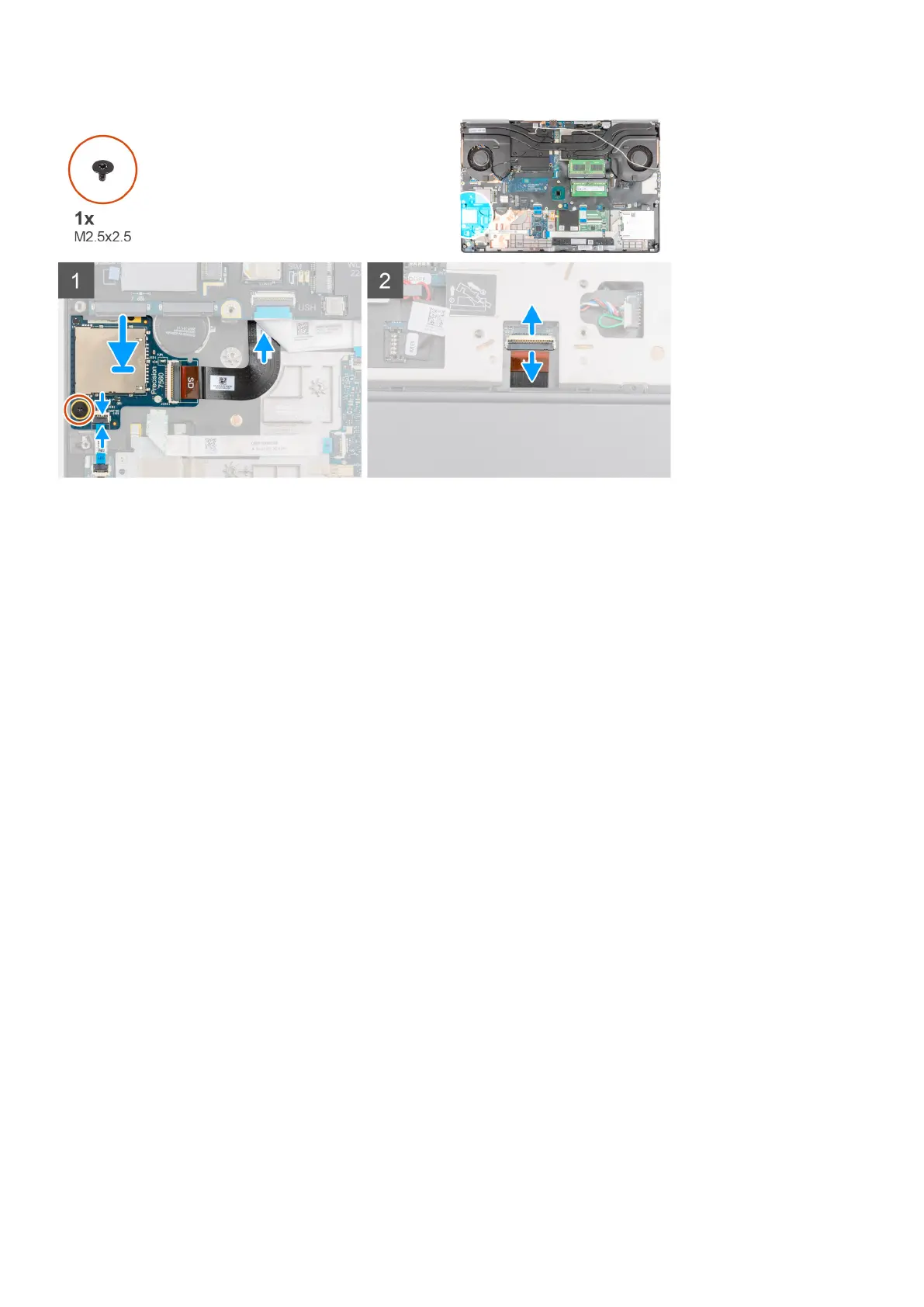

1. Align the SD card reader with the FPC into its slot on the palmrest.
2. Place the SD card reader with the FPC on the palmrest and route the SD card reader FPC through the opening in the
palmrest.
3. Replace the (M2.5x2.5) screw to secure the SD card reader to the palmrest.
4. Connect the LED board FPC to the SD card reader.
5. Turn the computer and connect the SD card reader FPC to the connector on the system board.
Next steps
1. Install the inner frame.
2. Install the keyboard.
3. Install the keyboard lattice.
4. Install the WWAN card.
5. Install the WLAN card.
6. Install the primary M.2 SSD.
7. Install the battery.
8. Install the base cover.
9. Install the SD card.
10. Follow the procedure in after working inside your computer.
Heat sink
Removing the heat-sink assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
