WLAN/WiMax Card
Dell Precision™ M6400 Service Manual
Removing the WLAN/WiMax Card
Replacing the WLAN/WiMax Card
CAUTION: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage on
www.dell.com at: www.dell.com/regulatory_compliance.
NOTICE: Insert a WLAN or WiMax card only into the slot labeled WLAN/WiMax.
Removing the WLAN/WiMax Card
1. Follow the procedures in Before Working on Your Computer.
2. Remove the base assembly cover (see Removing the Base Assembly Cover
).
3. Disconnect the antenna cables from the card.
4. Remove the M2 x 3-mm screw. The card will pop up at a 45-degree angle.

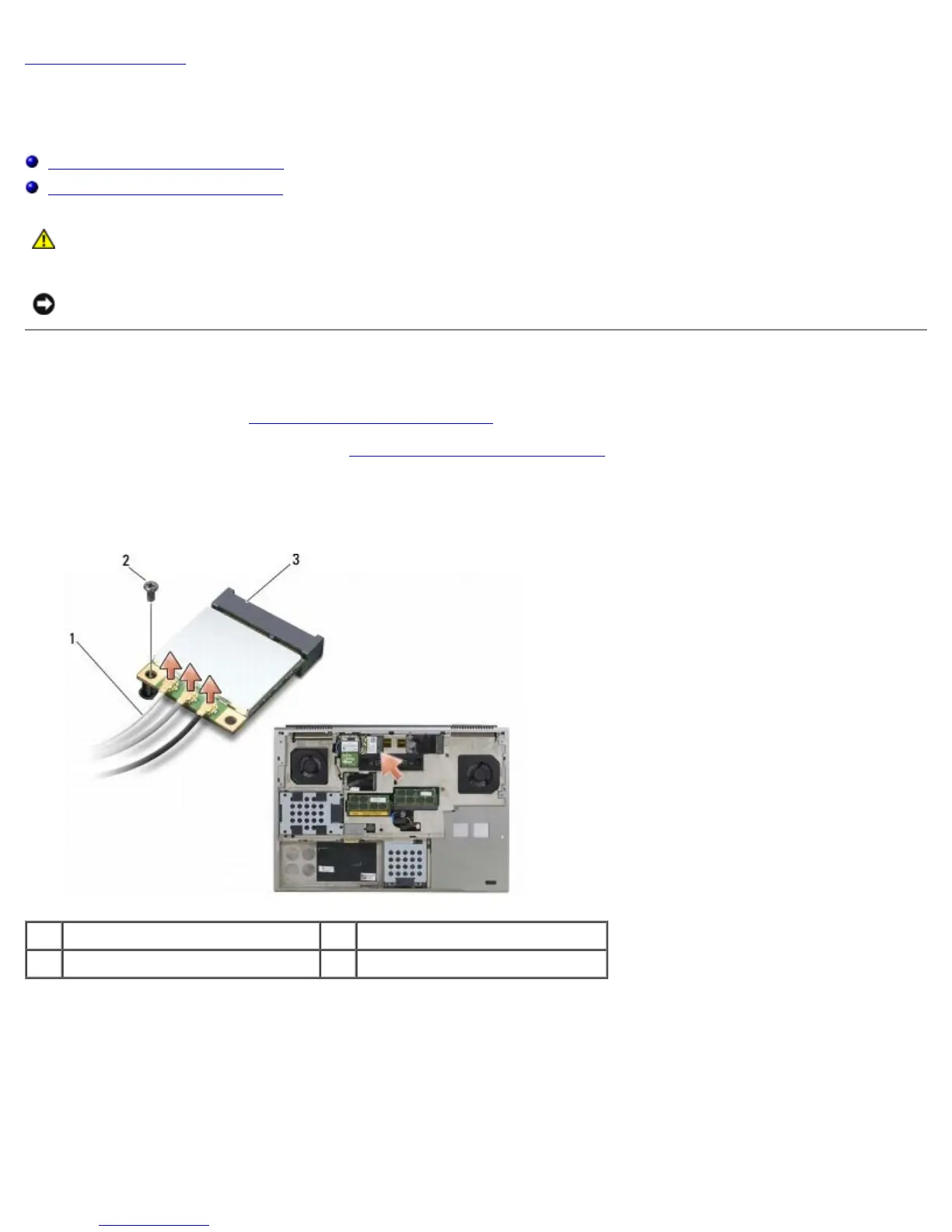

1 antenna cables (3) 2 M2 x 3-mm screw
3 WLAN/WiMax card
5. Slide the card out of the card connector on the system board.
