UWB WPAN Card and WPAN Card With
Bluetooth®Wireless Technology
Dell Precision™ M6400 Service Manual
Removing a WPAN Card
Replacing a WPAN Card
CAUTION: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage on
www.dell.com at: www.dell.com/regulatory_compliance.
NOTICE: WPAN is a generic name for Ultra Wide Band (UWB) and Bluetooth® wireless technology. Insert
a WPAN card only into the slot labeled WPAN/UWB/FCM.
Removing a WPAN Card
1. Follow the procedures in Before Working on Your Computer.
2. Remove the base assembly cover (see Removing the Base Assembly Cover
).
3. Disconnect the blue antenna cable from the card.
4. Remove the M2 x 3-mm screw. The card pops up at a 45-degree angle.

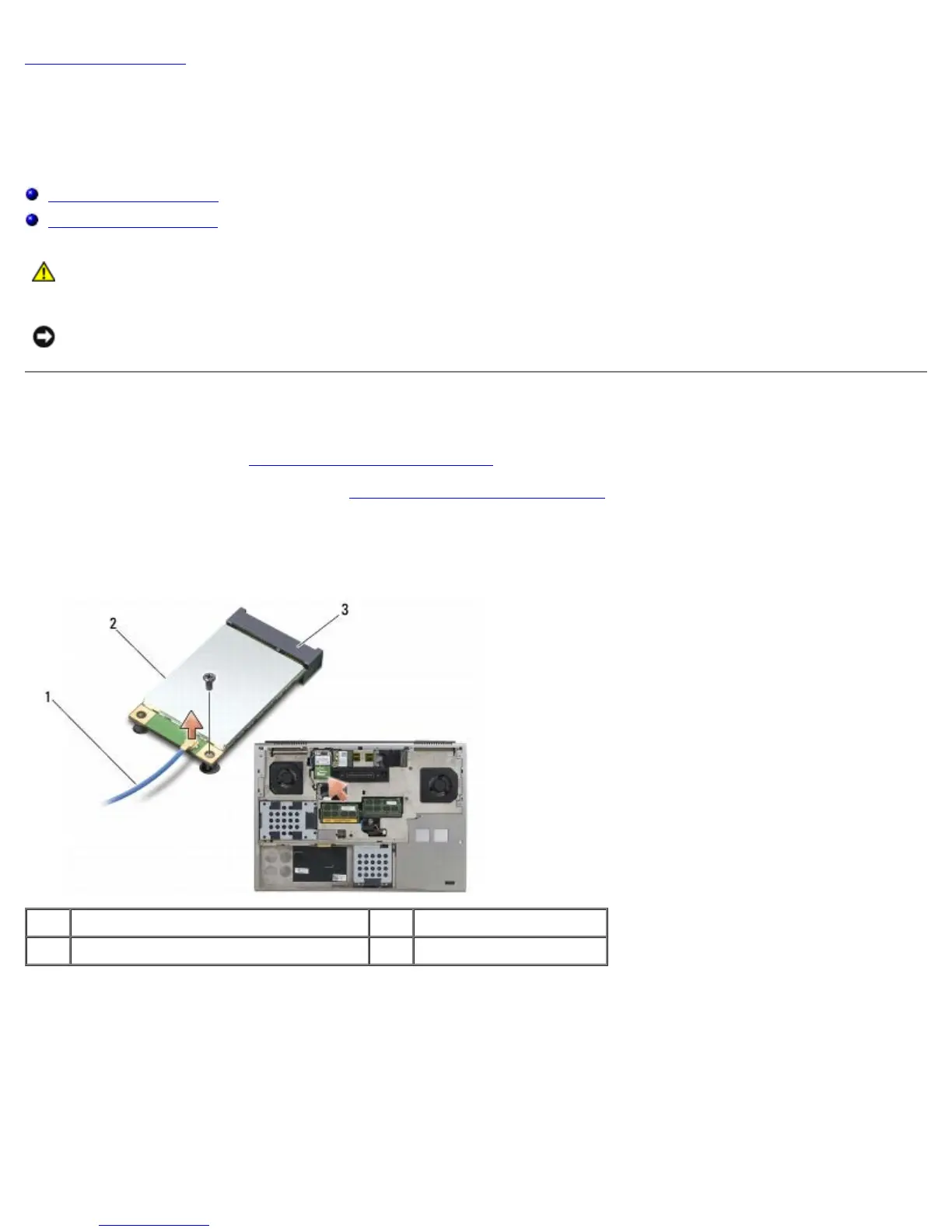

1 antenna cable 2 WPAN card
3 M2 x 3-mm screw
5. Slide the card out of the card connector on the system board.
