Card Cage
Dell Precision™ M6400 Service Manual
Removing the Card Cage
Replacing the Card Cage
Removing the Card Cage
CAUTION: Before working inside your computer, read the safety information that shipped with your
computer. For additional safety best practices information, see the Regulatory Compliance Homepage on
www.dell.com at: www.dell.com/regulatory_compliance.
1. Follow the procedures in Before Working on Your Computer
.
2. Remove the base assembly cover (see Removing the Base Assembly Cover
).
3. Remove the secondary hard drive (see Removing the Secondary Hard Drive (HDD2)
).
4. Remove the display assembly (see Removing the Edge-to-Edge Display
or Removing the Display Assembly).
5. Remove the LED cover (see Removing the LED Cover
).
6. Remove the keyboard (see Removing the Keyboard
).
7. Remove the palm rest (see Removing the Palm Rest Assembly
).
8. If a card is in the card cage, remove the card.
9. Disconnect the card cable from the I/O board.
10. Remove the four M2 x 3-mm screws.
11. Lift to remove the card cage.

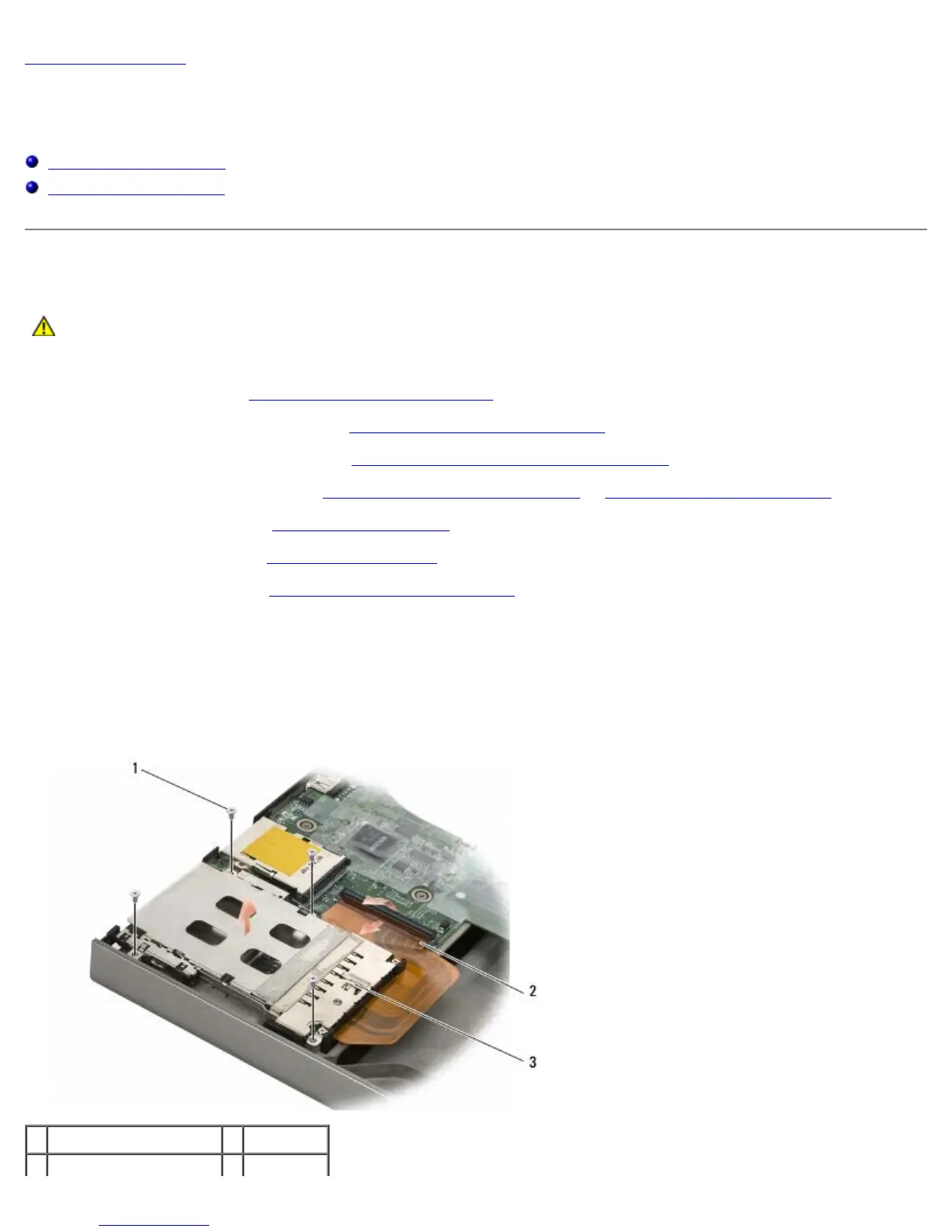

1 M2 x 3-mm screws (4) 2 card cable
3 card cage
