Dell S4148F-ON Series User Manual

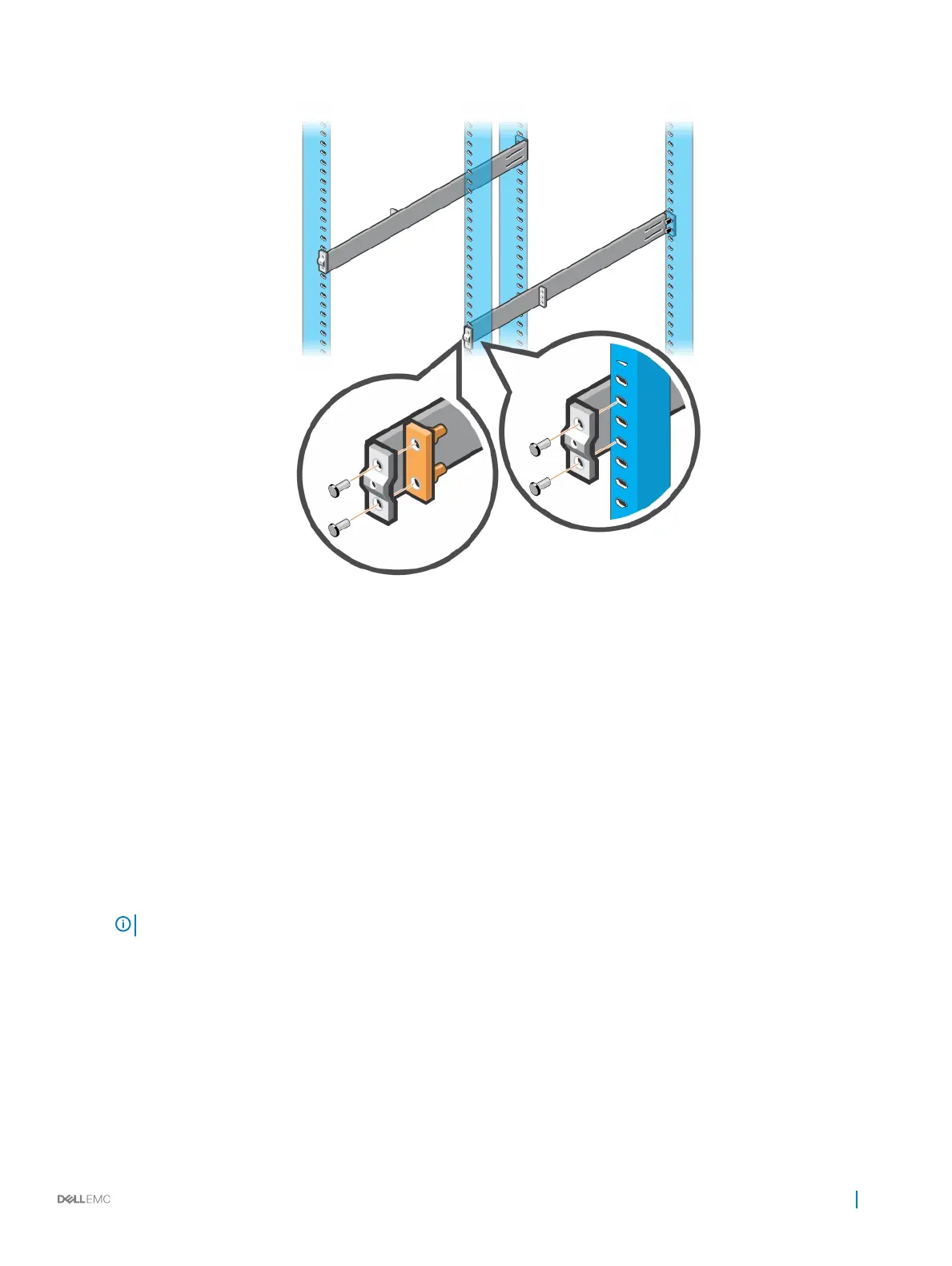

Figure 13. Four-post threaded installation
2 For each rail, attach the front and back anges to the post anges with two user-supplied screws at each end.
S4100-ON Series installation
You can mount the switch in the 1U front-rack two-post, ush or center conguration, or a four-post conguration. The following is an
example of a front-rack conguration:
For the 1U two-post congurations, slide the switch into the rails in the same manner as the four-post congurations.
1U front-rack installation
Congure the rails that are attached to the switch.
1
NOTE
: For more information, see the installation instruction labels on the rail.
Attach the inner switch rails to the S4100F–ON Series (S4128F-ON and S4148F-ON) switch.
Line up the rail with the mounting heads and attach the rail to the chassis. Slide the rail back until it locks into place. The following
shows the detail of the front stando with the locking tab:
S4100–ON Series installation
25

Dell S4148F-ON Series Specifications

General

Uplink Ports	6 x 40GbE QSFP+
Switching Capacity	1.44 Tbps
Power Supply	Dual, Hot-swappable
Airflow	Front-to-back or back-to-front
Product Type	Switch
Form Factor	Rack-mountable
Flash Memory	16GB
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C
Model	S4148F-ON
Category	Switch
Storage Temperature	-40°C to 70°C
AC Input Frequency	50/60 Hz
Latency	800ns
Rack Units	1
Jumbo Frame Support	9, 216 bytes
Software	Dell EMC Networking OS10
CPU	Intel x86
RAM	8GB
Operating System	Dell EMC OS10
Management	CLI, SNMP
Dimensions (W x D x H)	440 x 440 x 44 mm
Humidity	5% to 95% non-condensing
Ports	48 x 10GbE SFP+
Operating Humidity	10% to 90% (non-condensing)
