Dell Studio 1535 - Replacing the Display Panel


8. Turn over the display panel and remove the conductive tape on the display board.

9. Disconnect the display cable from the display board.

Replacing the Display Panel


1. Follow the instructions in Before You Begin.

2. Replace the four screws (two on each side of the display panel) to secure the display brackets to the display panel.

3. Connect the display cable to the board at the back of the display panel.

4. Connect the power cables to the connectors on both ends of the inverter.

5. Align the screw holes on the display bracket with the corresponding screw holes and guide pins on the top cover and gently lower the display panel into
place.

6. Replace the four screws that secure the display panel to the cover.

7. Replace the display bezel (see Replacing the Display Bezel).

8. Replace the display assembly (see Replacing the Display Assembly).

1

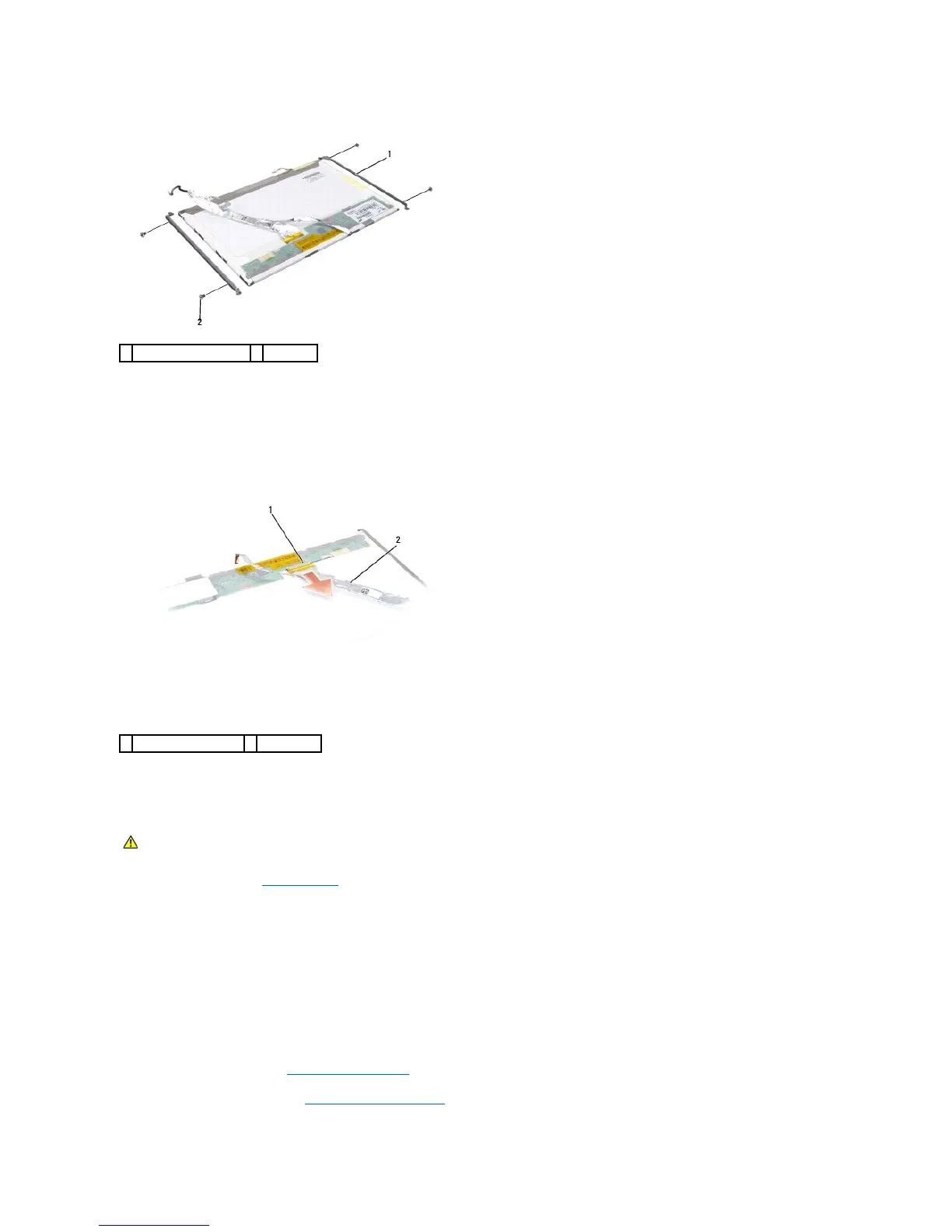

display panel bracket (2)
2
screws (4)
1
display cable connector
2
display cable
CAUTION: Before you begin the following procedure, follow the safety instructions that shipped with your computer.
