 Speaker Assembly
Dell™Studio1535/1536ServiceManual


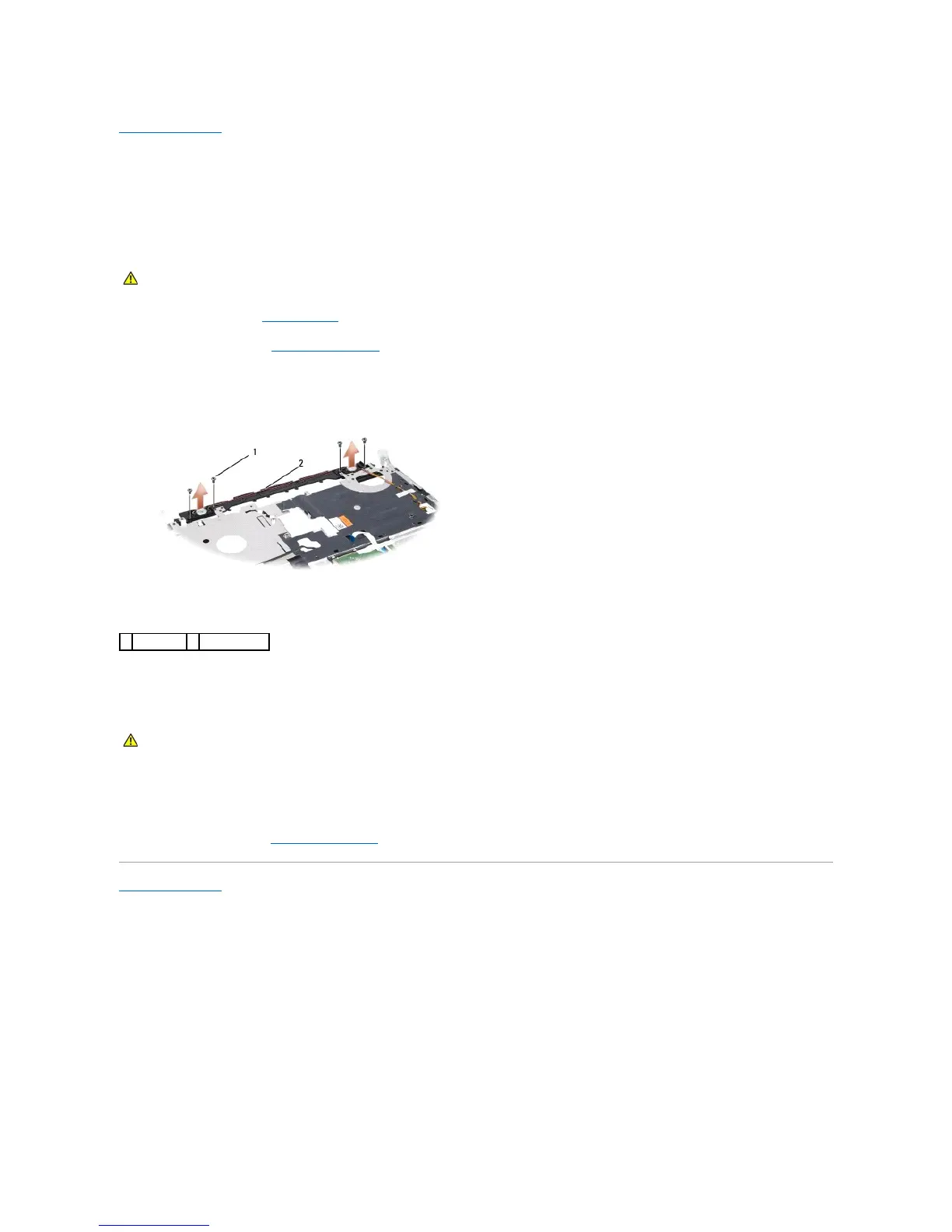

Removing the Speaker Assembly


1. Follow the instructions in Before You Begin.

2. Remove the palm rest (see Removing the Palm Rest).

3. Remove the four screws (two on each side) on the speakers.

4. Release the speaker cable from the securing tabs on the palm rest and take out the speaker assembly.

Replacing the Speaker Assembly


1. Replace and tighten the four screws securing the speaker assembly to the palm rest.

2. Route the speaker cables carefully through the securing tabs on the palm rest.

3. Replace the palm rest (see Replacing the Palm Rest).
Back to Contents Page

CAUTION: Before you begin the following procedure, follow the safety instructions that shipped with your computer.
1
screws (4)
2
speaker cable
CAUTION: Before you begin the following procedure, follow the safety instructions that shipped with your computer.
