Dell Studio 1535 - Removing the Microphone Module; Replacing the Microphone Module

Back to Contents Page
 Microphone
Dell™Studio1535/1536ServiceManual


Removing the Microphone Module

1. Follow the procedures in Before You Begin.

2. Remove the palm rest. See Removing the Palm Rest.

3. Disconnect the microphone cable from the system board and remove the microphone module.

Replacing the Microphone Module

1. Connect the USB/Audio board cables to the system board.

2. Connect the microphone cable to the connector on the system board.

3. Replace the palm rest (see Replacing the Palm Rest).
Back to Contents Page

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
NOTE: The analog microphone is not present if you have ordered the optional camera. Instead, you will have digital array microphones with the camera.

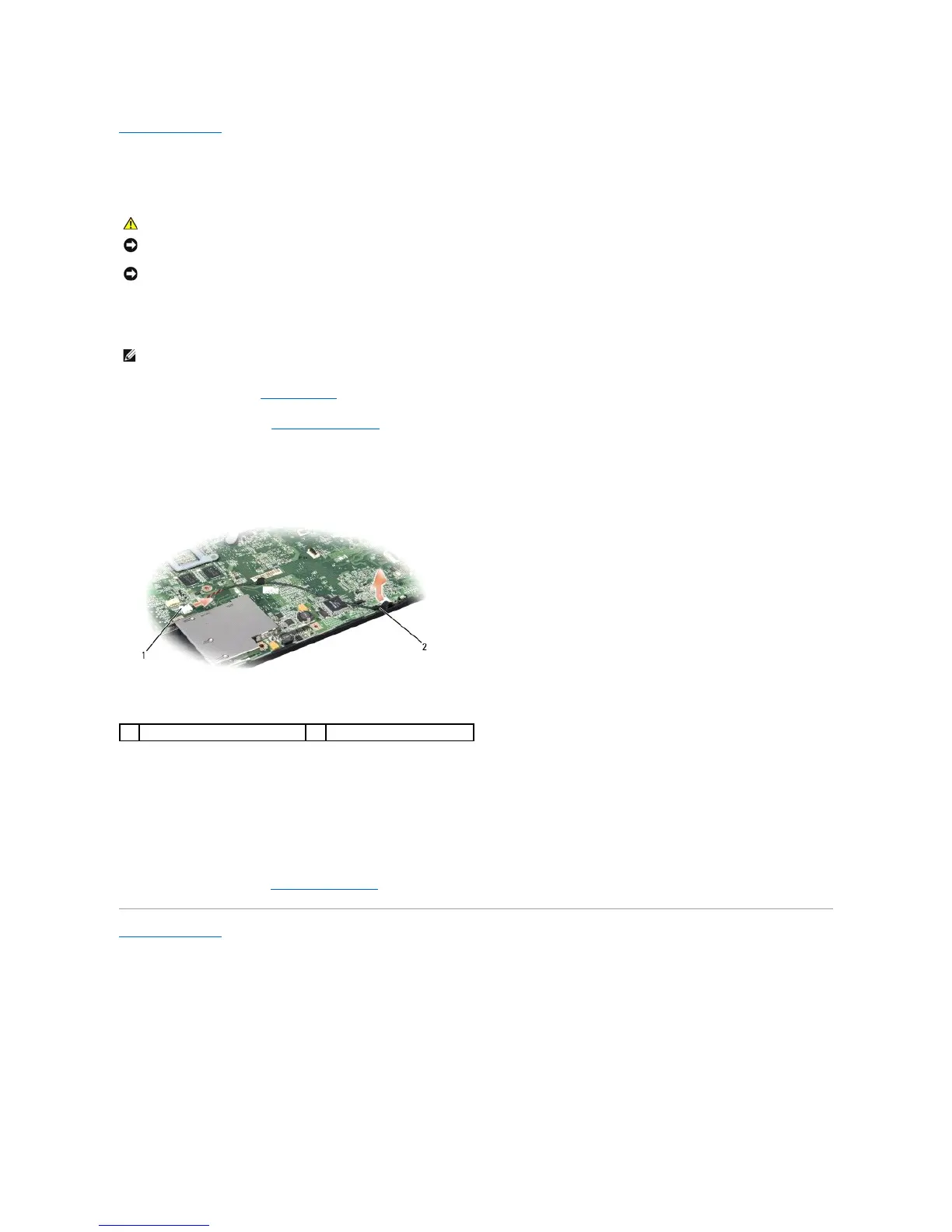

1
Microphone connector
2
Microphone module
