About this task

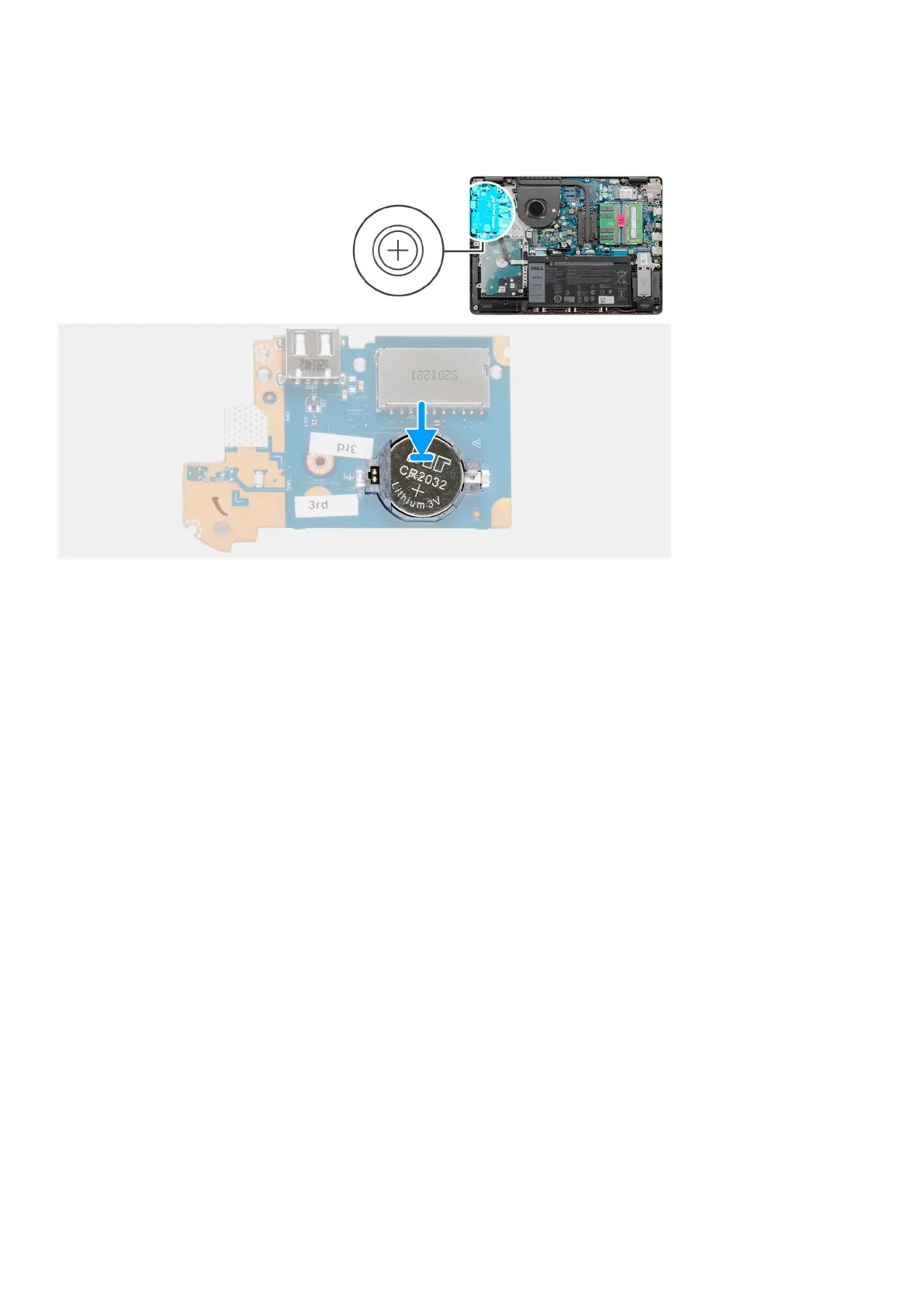

The following images indicate the location of the coin-cell battery and provides a visual representation of the installation
procedure.
Steps
1. Place the coin-cell battery into the coin-cell battery holder on the I/O board with the plus sign facing up.
2. Press down on the coin-cell battery to lock it in place in the coin-cell battery holder.
Next steps
1. Install the IO board.
2. Reconnect the battery.
3. Install the base cover.
4. Install the SD card.
5. Follow the procedure in After working inside your computer.
Hard drive
Removing the hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Disconnect the battery.
About this task
The following images indicate the location of the hard drive and provides a visual representation of the removal procedure.
32
Disassembly and reassembly
