Steps
1. Place the display assembly on the palm-rest and keyboard assembly.
2. Align the screw holes on the display hinges with the screw holes on the palm-rest and keyboard assembly.
3. Replace the 6 screws (M2.5x5) that secure the display hinges to the palm-rest and keyboard assembly.

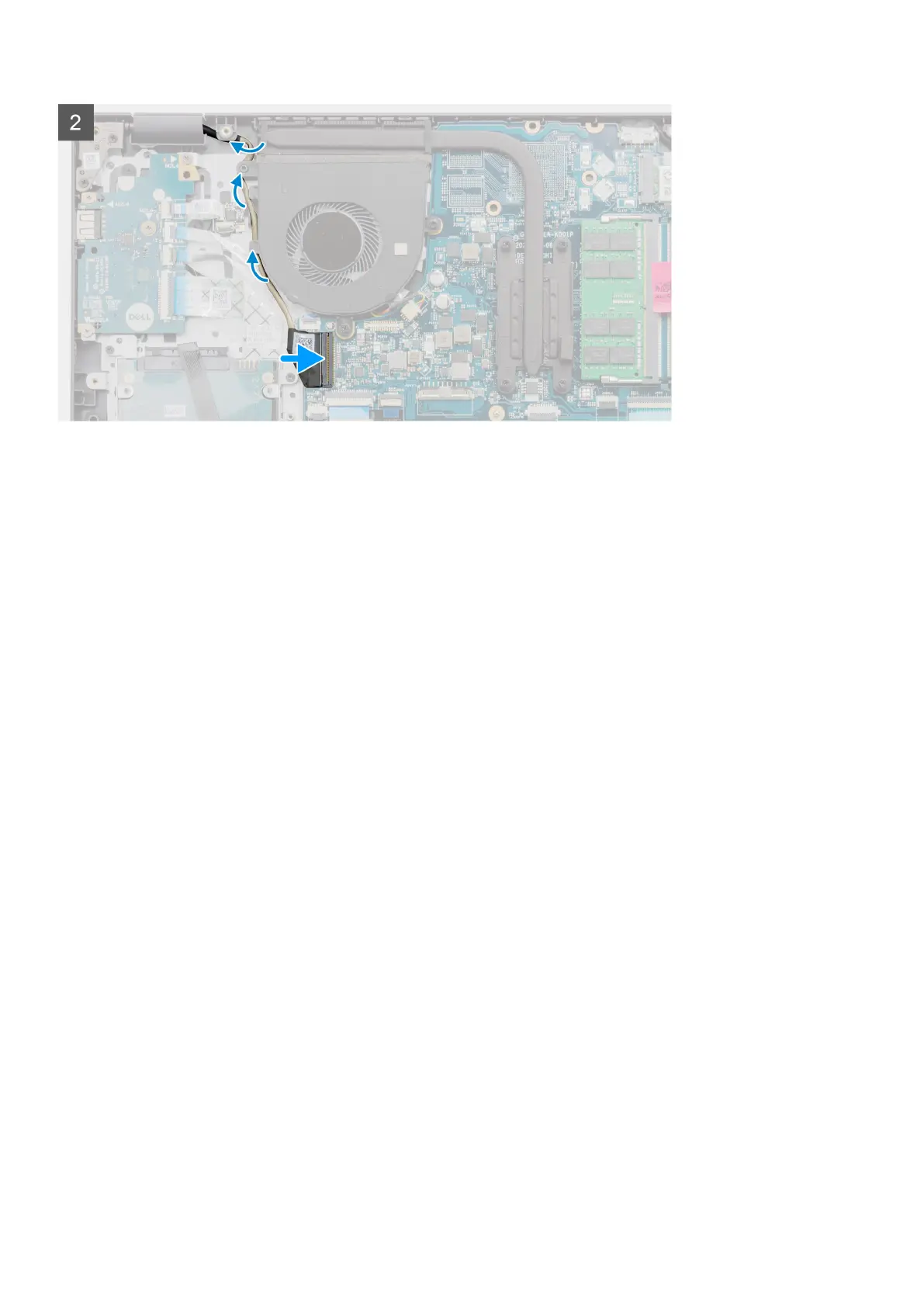

4. Route the display cable through the routing guides on the palm-rest and keyboard assembly.
5. Connect the display cable to the connector on the system board.
Next steps
1. Install the wireless card.
2. Install the battery.
3. Install the base cover.
4. Install the SD card.
5. Follow the procedure in After working inside your computer.
Display bezel
Removing the display bezel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the display assembly.
Disassembly and reassembly
47
