11. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the M.2 2230 solid-state drive.
6. Remove the M.2 2280 solid-state drive.
7. Remove the fan.
8. Remove the wireless card.
9. Remove the display assembly.
10. Remove the system board.
NOTE: The system board can be removed along with the heat sink.
About this task

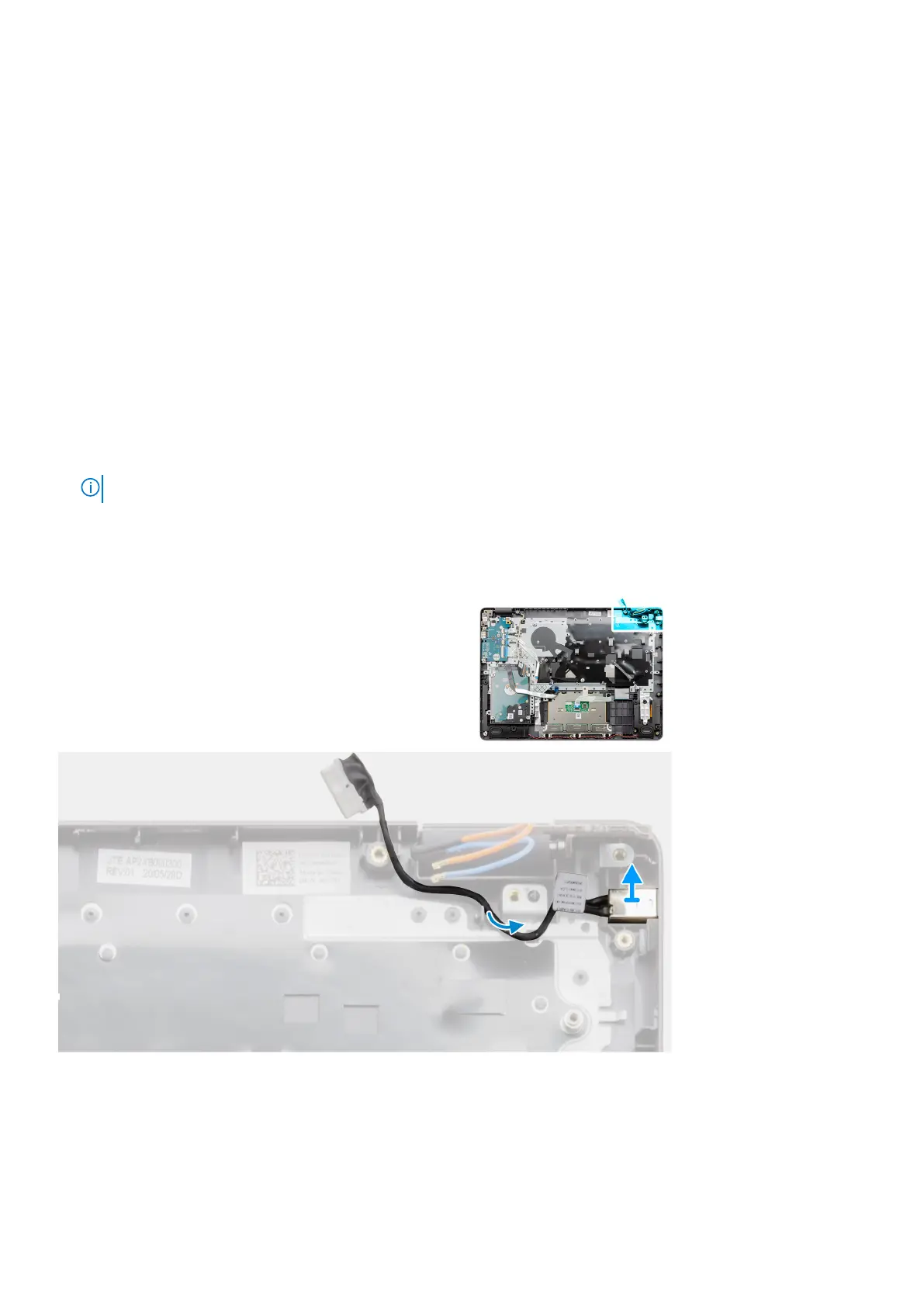

The following images indicate the location of the power-adapter port and provides a visual representation of the removal
procedure.
Steps
Lift the power-adapter port from its slot on the palm-rest and keyboard assembly.
Disassembly and reassembly
65
