About this task
Steps

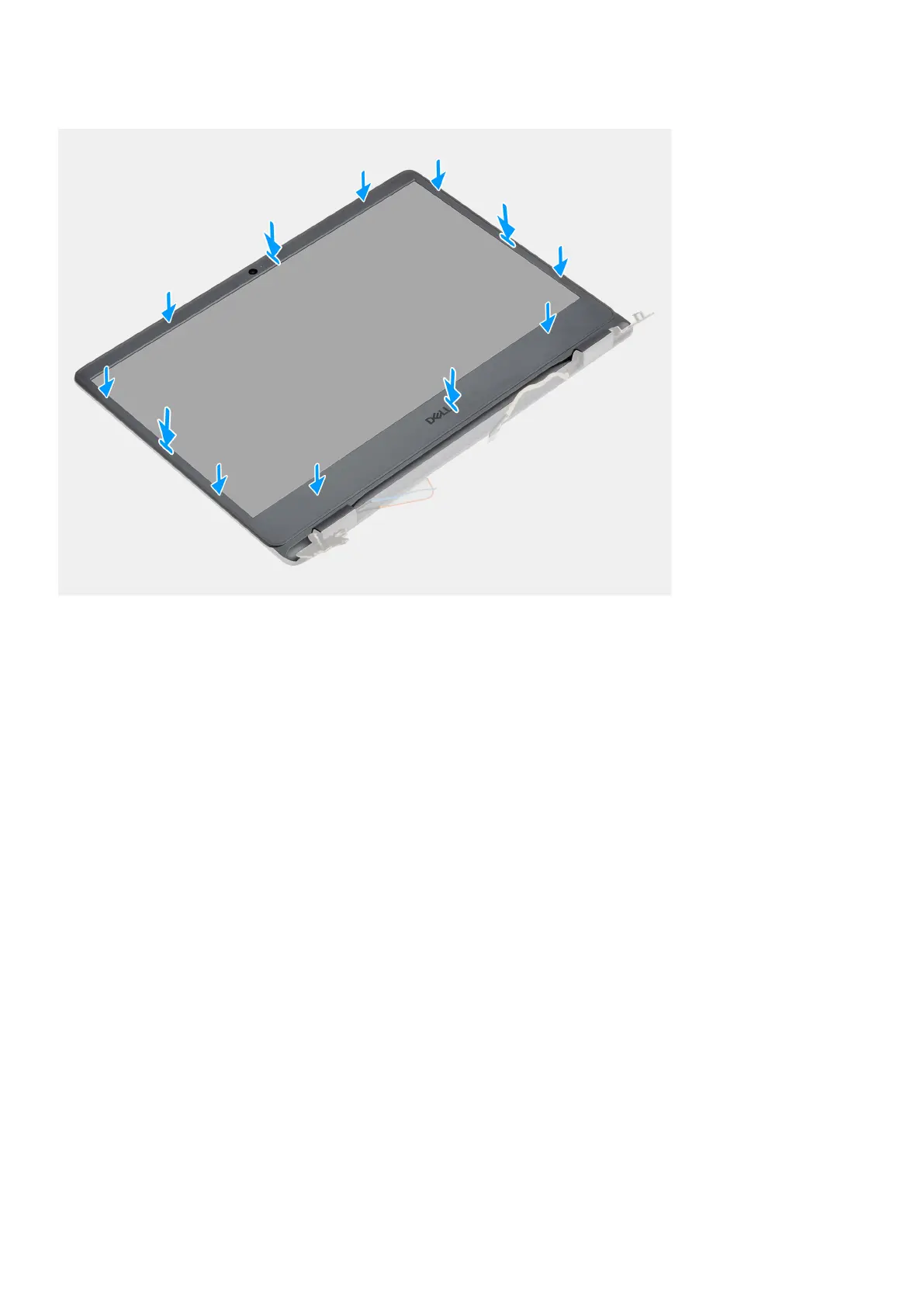

Align the display bezel with the display back-cover and antenna assembly, and then gently snap the display bezel into place.
Next steps
1. Install the display assembly.
2. Reconnect the battery.
3. Install the base cover.
4. Install the SD card.
5. Follow the procedure in after working inside your computer.
Display panel
Removing the display panel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the wireless card.
5. Remove the display assembly.
6. Remove the display bezel.
About this task
The following images indicate the location of the display panel and provides a visual representation of the removal procedure.
50
Disassembly and reassembly
