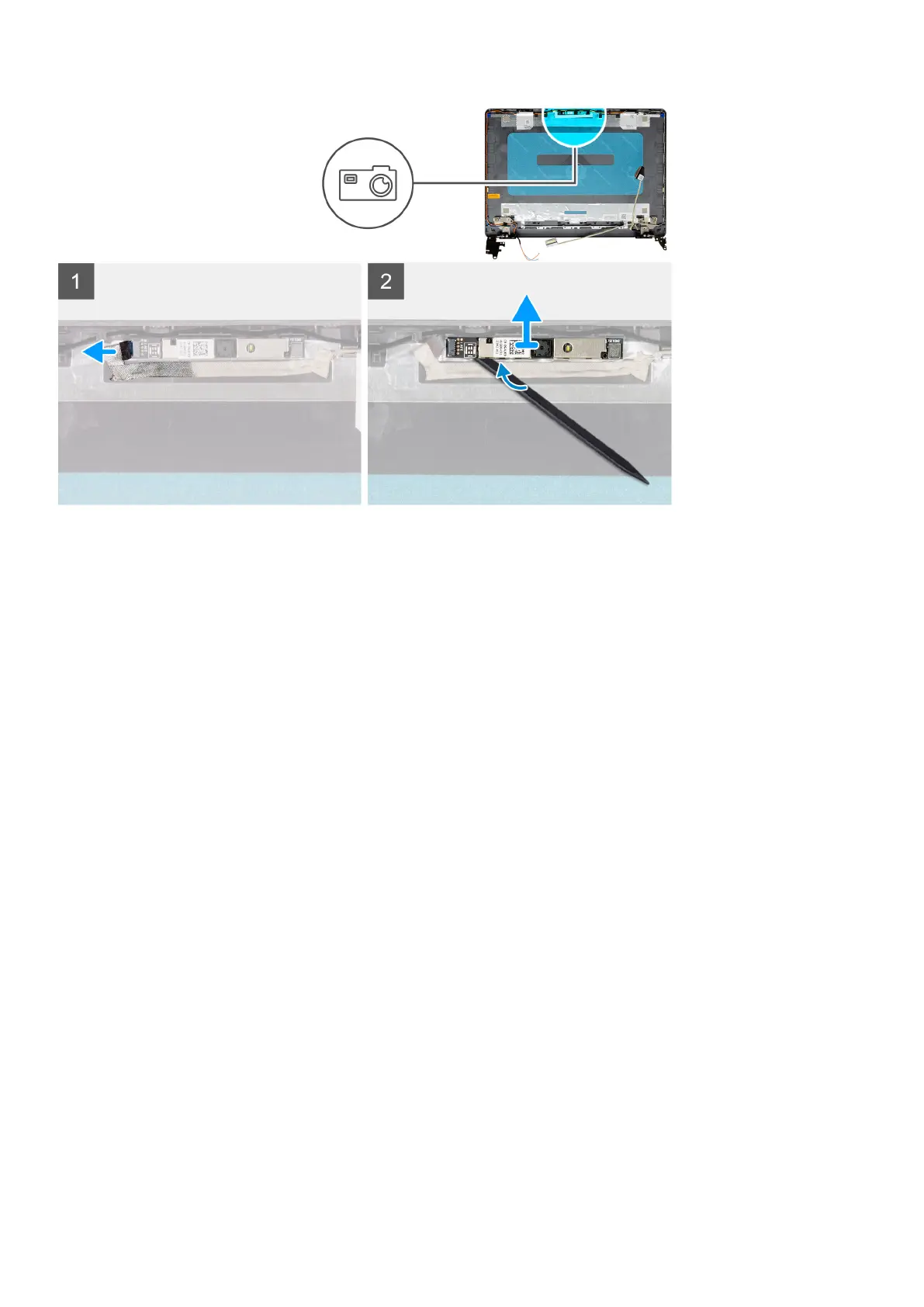

Steps
1. Using the pull tab, disconnect the camera cable from the camera module.
2. Using a plastic scribe, pry the camera module from the display assembly.
3. Lift the camera off the display assembly.
Installing the camera module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the camera module and provides a visual representation of the installation
procedure.
56
Disassembly and reassembly
