Memory modules
Removing the memory modules
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Disconnect the battery.
About this task

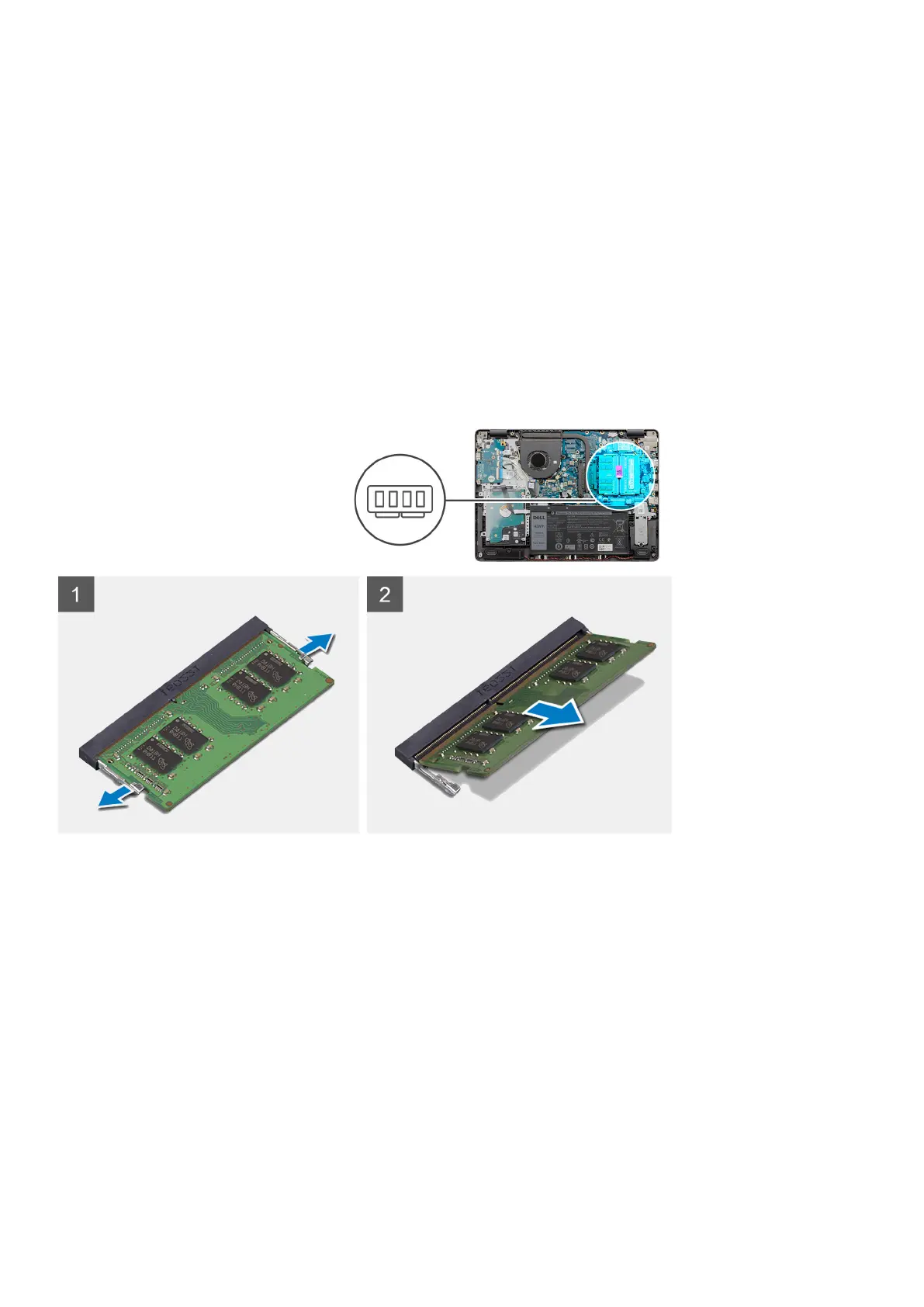

The following images indicate the location of the memory modules and provides a visual representation of the removal
procedure.
Steps
1. Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory
module pops up.
2. Lift at an angle and remove the memory module from its slot on the system board.
3. Repeat the procedure above for the second memory module.
Installing the memory modules
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the memory modules and provides a visual representation of the installation
procedure.
Disassembly and reassembly
35
