Steps
1. Remove the six screws (M2.5x2.5) that secure the display panel to the display assembly.

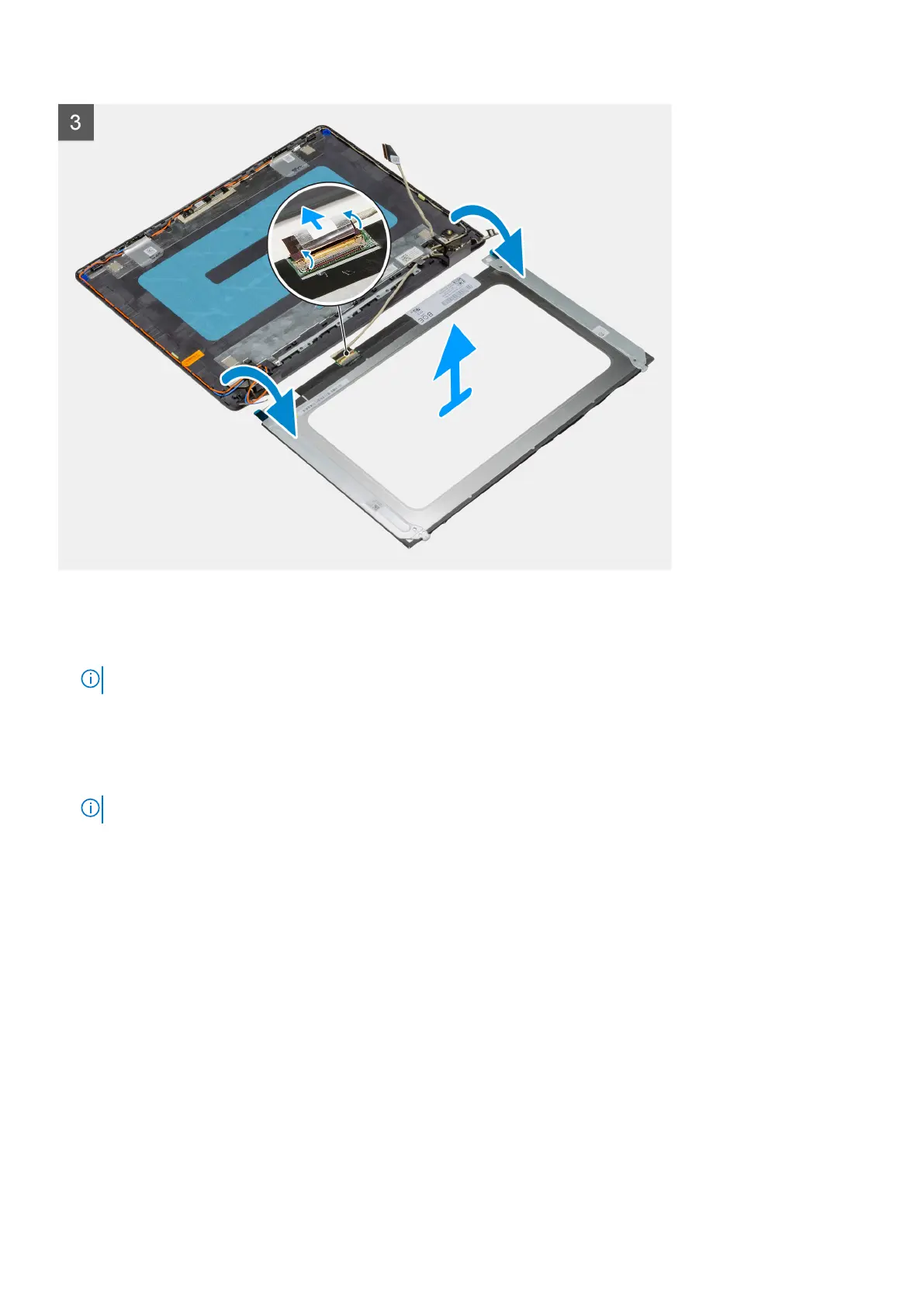

2. Lift and rotate the display panel forward.
NOTE: Ensure that the display panel has a smooth and clean surface to rest on to prevent damage.
3. Disconnect the display cable from the display panel.
4. Peel the tape that secures the display-cable connector latch to the display panel.
5. Lift the display-cable latch and disconnect the display cable from the display panel.
6. Lift the display panel off the display assembly.
NOTE: Do not remove the metal brackets from the panel.
Installing the display panel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the display panel and provides a visual representation of the installation procedure.
