Steps

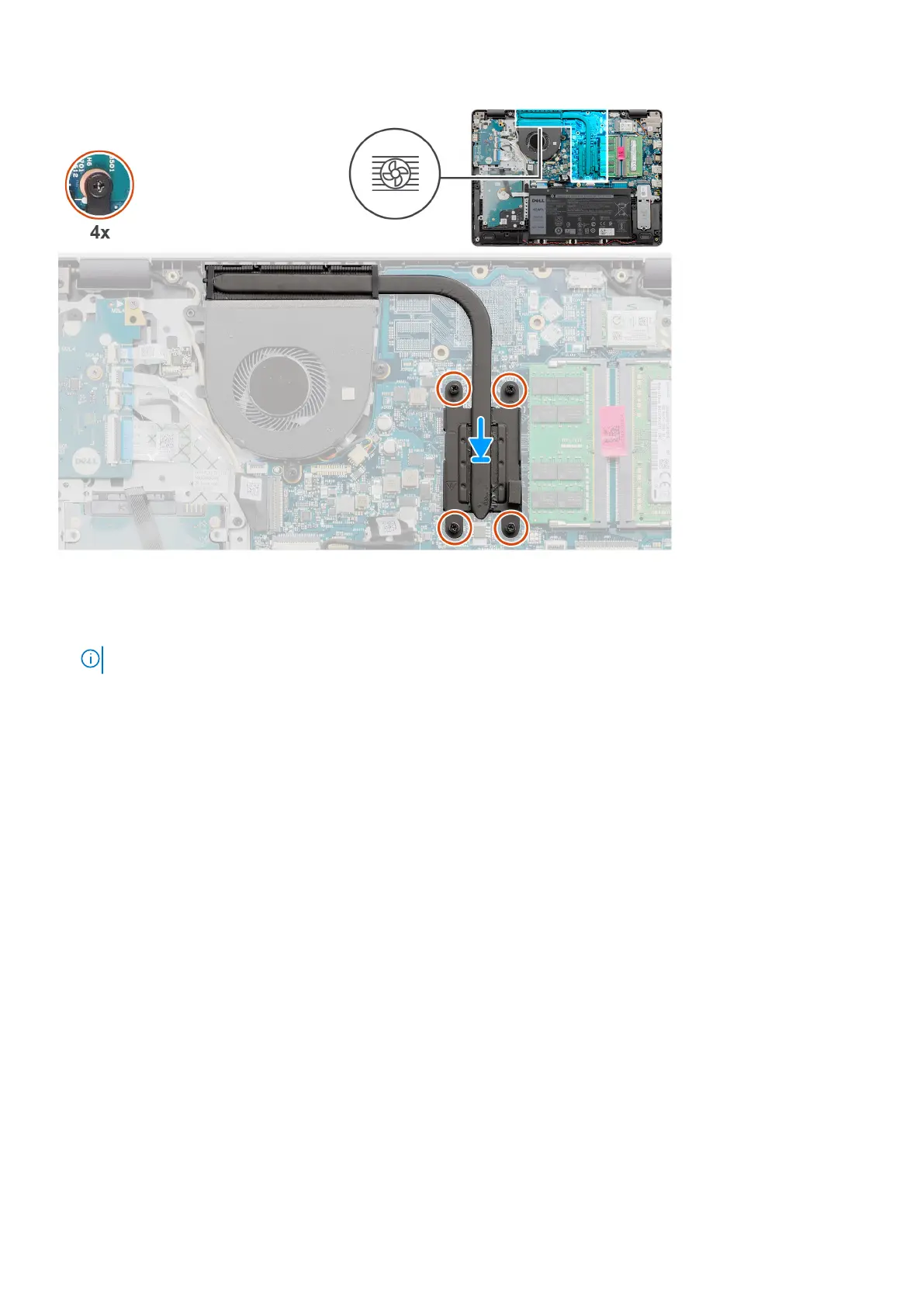

1. Place the heat sink on the system board.
2. In sequential order (1>2>3>4) tighten the four captive screws that secure the heat sink to the system board.
NOTE: The number of screws varies depending on the configuration ordered.
Next steps
1. Reconnect the battery.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
Fan
Removing the fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Disconnect the battery.
About this task
The following images indicate the location of the fan and provides a visual representation of the removal procedure.
