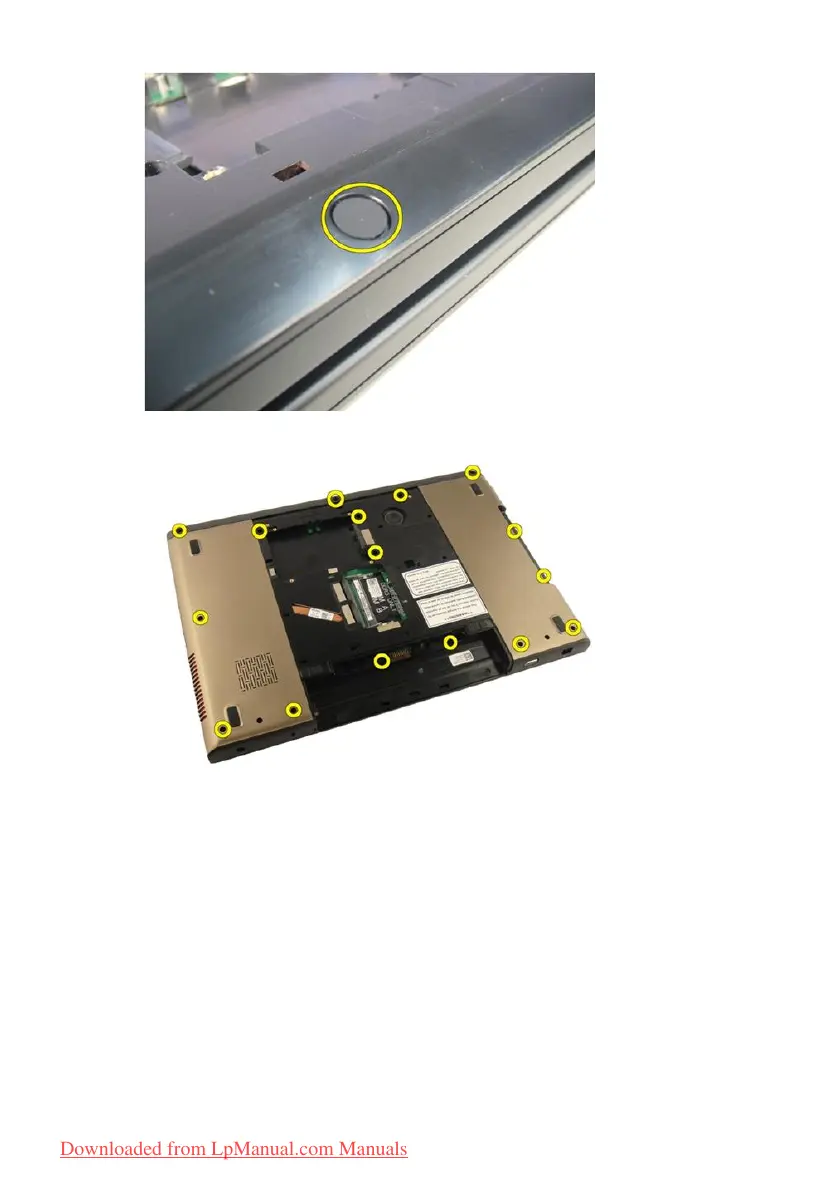

7. Remove the screws that secure the bottom base.

8. Flip the computer around and remove the screws that secure the palm rest.

40
