Dell Vostro 3750 - Display Brackets and Hinges

17
Display Brackets and Hinges
Removing The Display Brackets And Hinges
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the keyboard .
4. Remove the memory door .
5. Remove the optical drive .
6. Remove the palm rest .
7. Remove the hinge cover .
8. Remove the WLAN card .
9. Remove the display assembly .
10. Remove the
display bezel .
11. Remove the display panel .

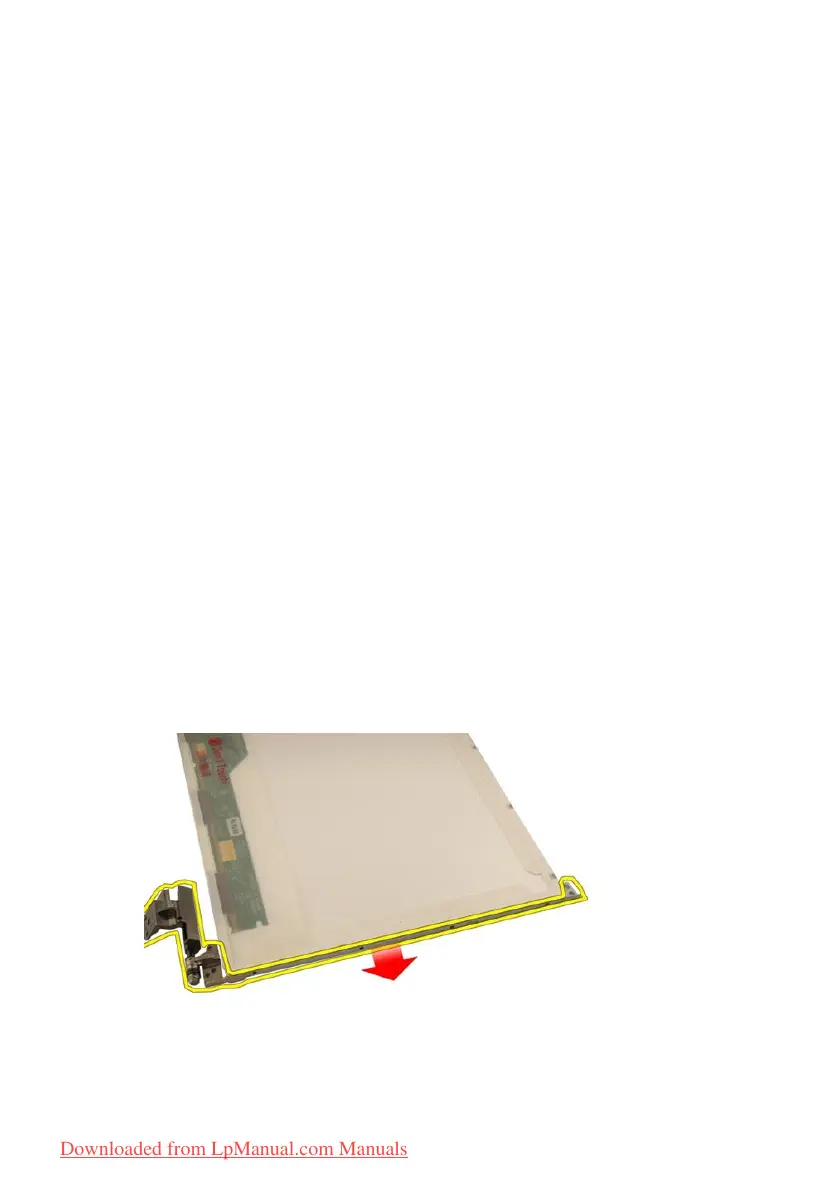

12. Remove the screws that secure the left-display bracket.
71
