Dell Vostro 3750 - 11 Hinge Cover; Removing the Hinge Cover

11
Hinge Cover
Removing The Hinge Cover
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the keyboard .
4. Remove the optical drive .
5. Remove the memory door .
6. Remove the palm rest .

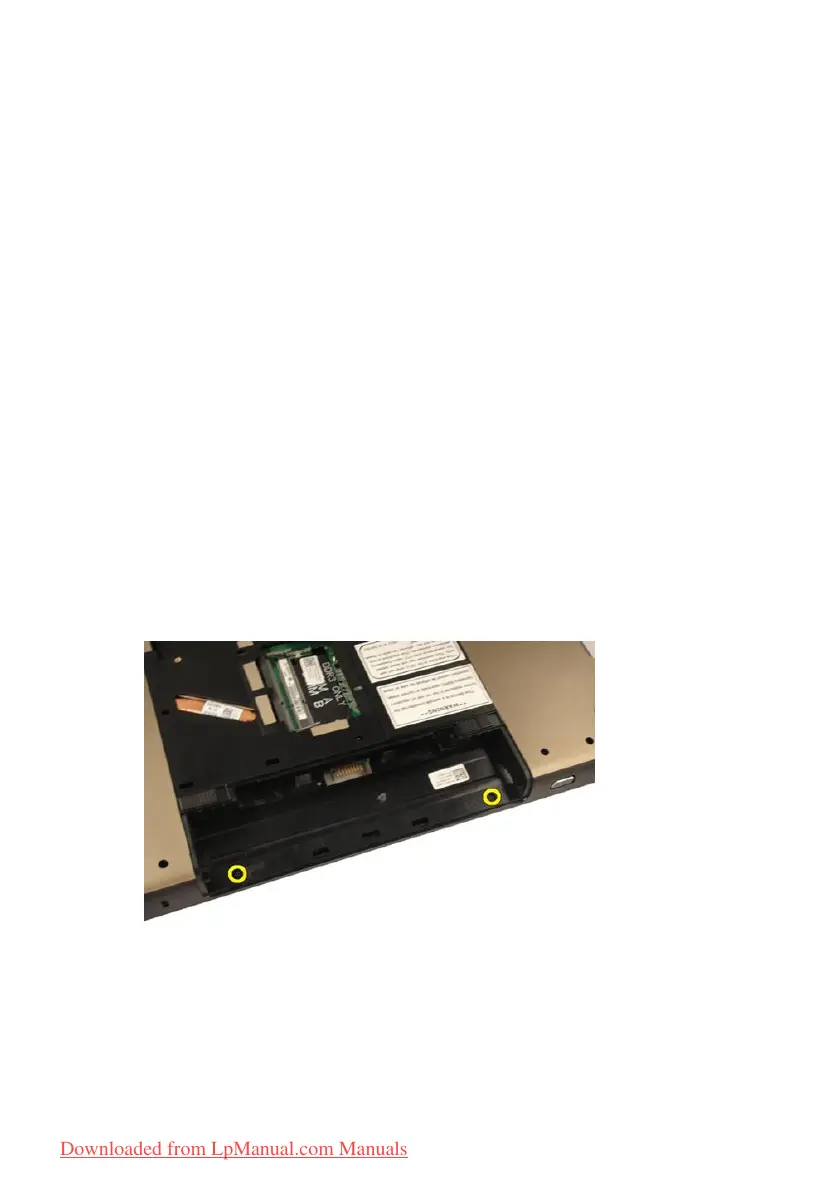

7. Remove the screws that secure the hinge cover from the battery
compartment.
8. Press and hold the three hooks to disengage.
47
