Dell Vostro 3750 - Installing the Palmrest

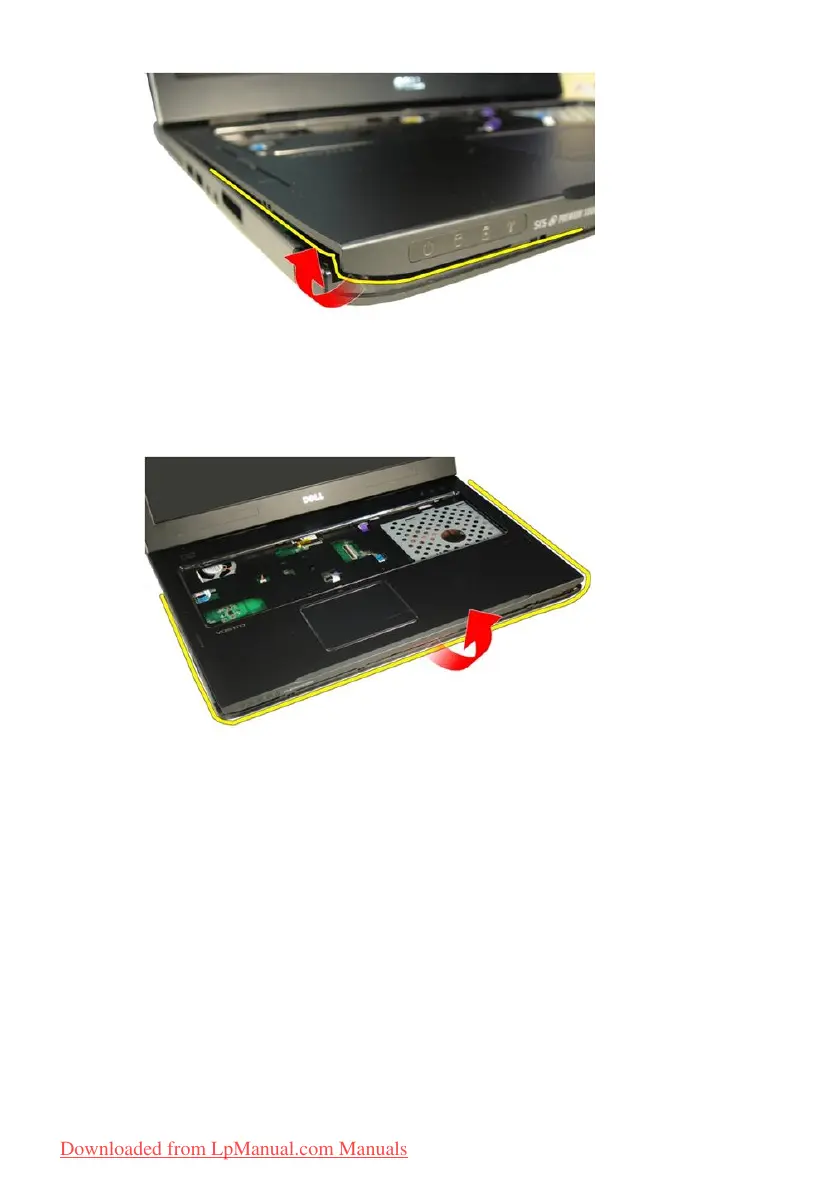

15. Pry up the sides of the palm rest and remove it.
Installing The Palmrest
1. Connect all cables to the palm rest.
2. Tighten the captive screws to secure the palm rest in place.
3. Tighten the screws on the bottom of the system that secure the palm rest.
4. Install the optical drive .
5. Install the memory door .
6. Install the keyboard .
44
