Dell Vostro 3750 - Display Assembly; Removing The Display Assembly

13
Display Assembly
Removing The Display Assembly
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the keyboard .
4. Remove the memory door .
5. Remove the
optical drive .
6. Remove the palm rest .
7. Remove the hinge cover .
8. Remove the WLAN card .

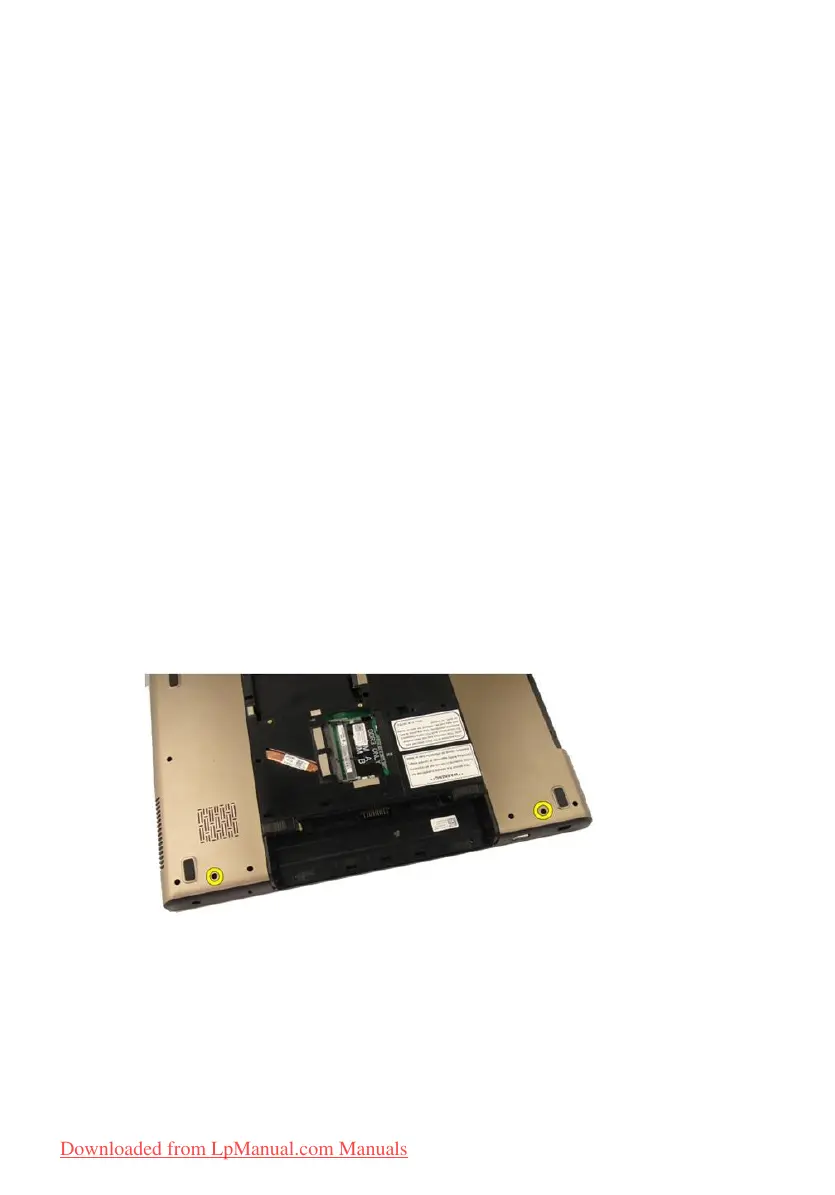

9. Remove the screws that secure the display hinge.
10. Release the latch on the system board and then disconnect the display
cable.
55
