ExpressCard Board
Removing The ExpressCard Board
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the keyboard .
4. Remove the memory door .
5. Remove the optical drive .
6. Remove the palm rest .
7. Remove the ExpressCard cable .

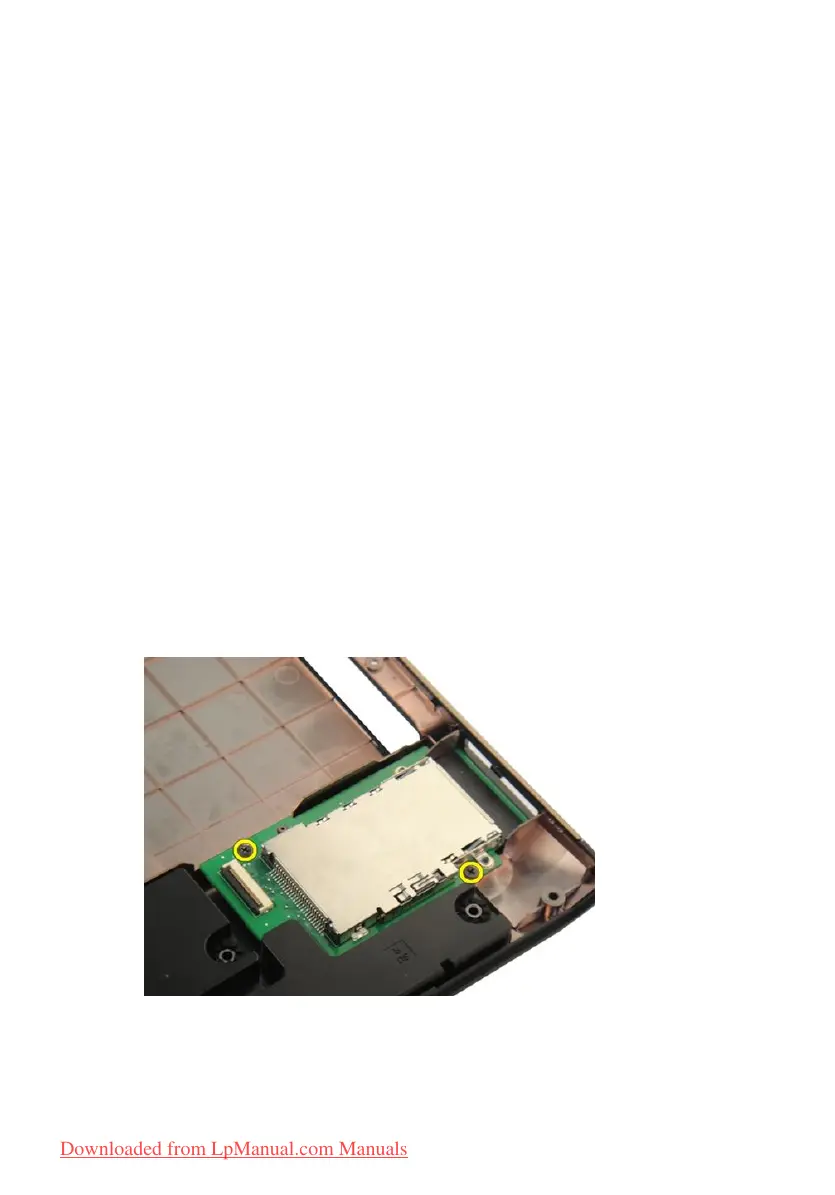

8. Remove the screws that secure the ExpressCard board.
9. Remove the ExpressCard board.
