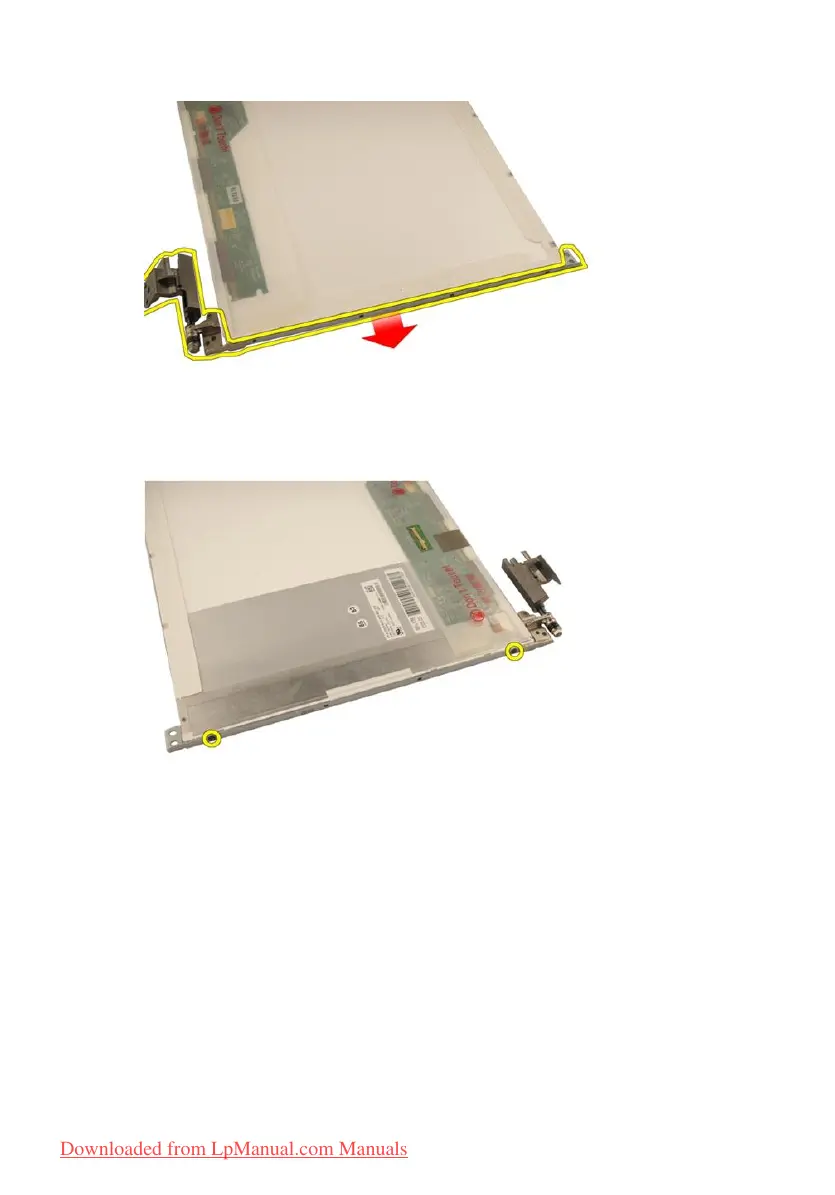

13. Remove the left-display bracket.

14. Remove the screws that secure the right-display bracket.

15. Remove the right-display bracket.

72
