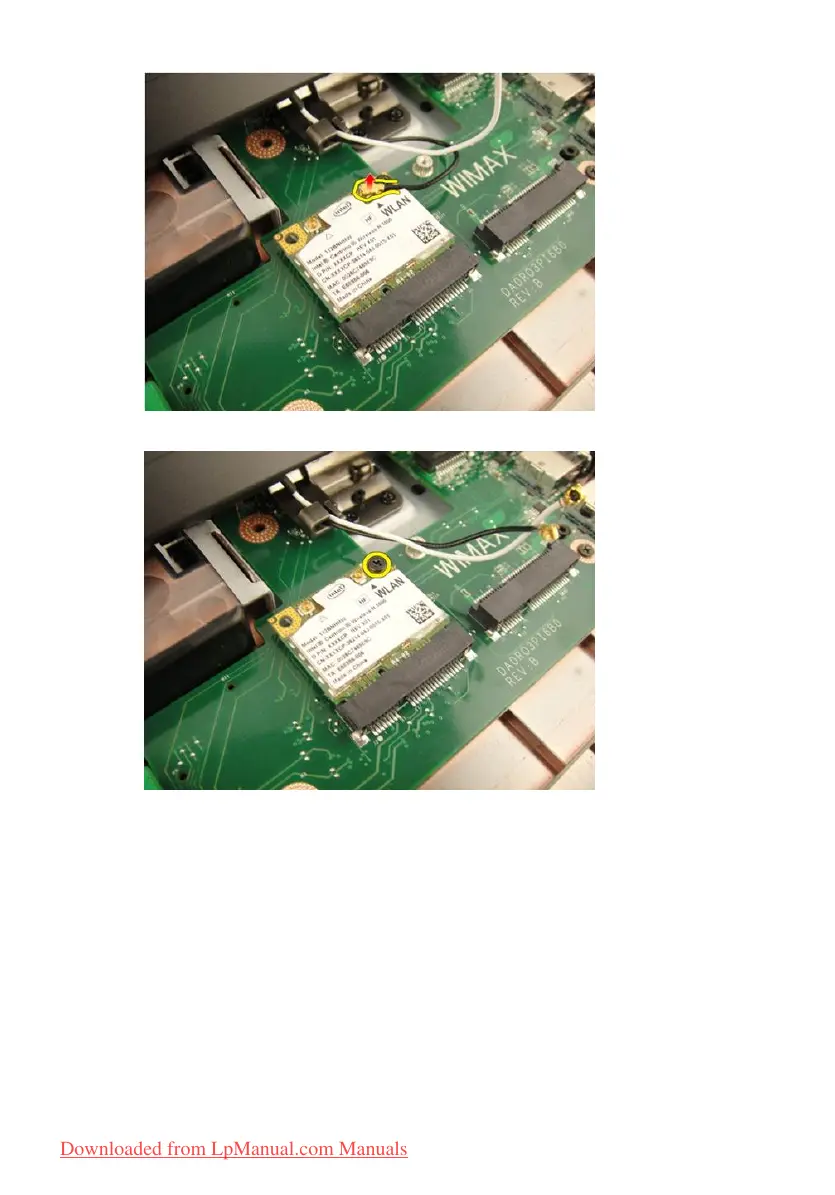

9. Remove the screw that secures the WLAN card.

10. Pull the WLAN card straight out of its socket and remove it.

52
