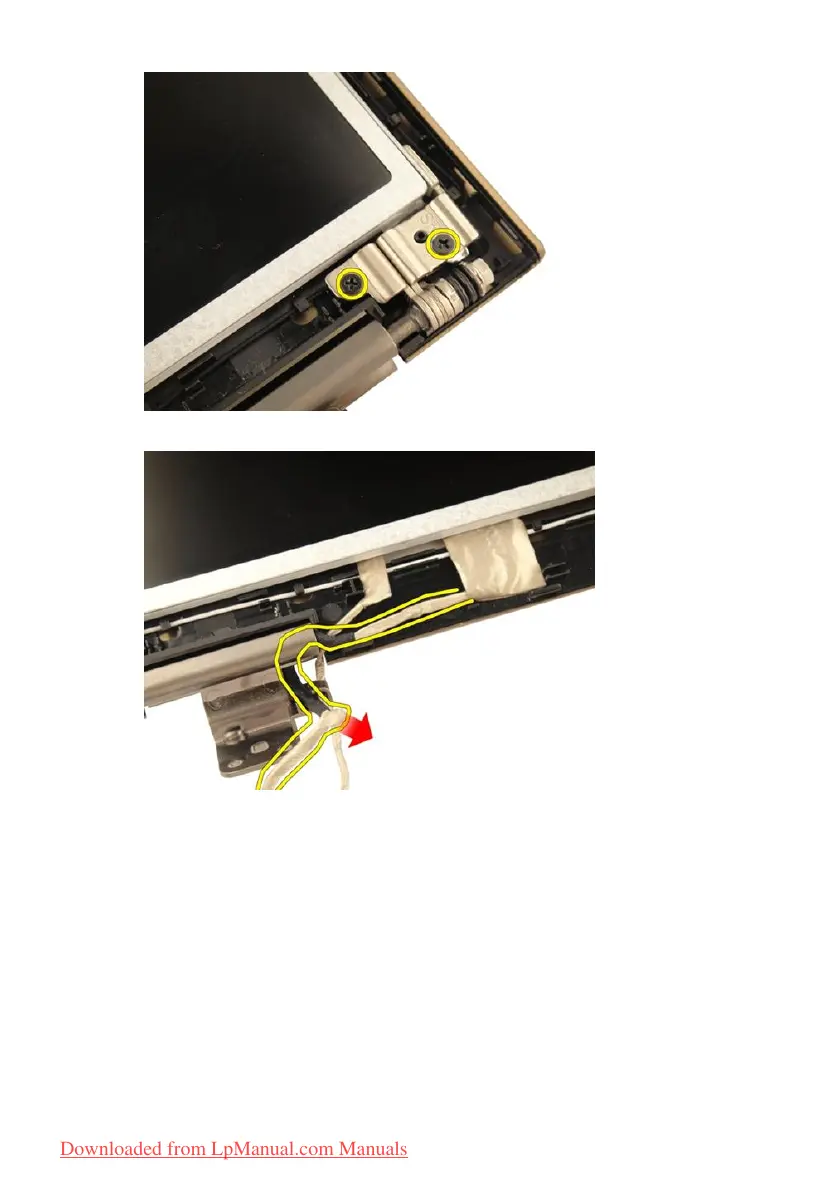

15. Release the display cable from the trough as shown in the image.

16. Release the WLAN antenna cable from the trough as shown in the image

below.

65

Downloaded from LpManual.com Manuals

Table of Contents

Notes, Cautions, and Warnings2
- Table of Contents3
1 Working on Your Computer9
- Before Working Inside Your Computer9
- Recommended Tools11
- Turning off Your Computer11
- After Working Inside Your Computer11
2 Battery13
- Removing the Battery13
- Installing the Battery14
3 Secure Digital (SD) Card15
- Removing the Secure Digital (SD) Card15
- Installing the Secure Digital (SD) Card16
4 Expresscard17
- Removing the Expresscard17
- Installing the Expresscard18
5 Keyboard19
- Removing the Keyboard19
- Installing the Keyboard26
6 Memory Door27
- Removing the Memory Door27
- Installing the Memory Door28
7 Memory29
- Removing the Memory Module29
- Installing the Memory Module30
8 Hard Drive31
- Removing the Hard Drive31
- Installing the Hard Drive33
9 Optical Drive35
- Removing the Optical Drive35
- Installing the Optical Drive37
10 Palm Rest39
- Removing the Palmrest39
- Installing the Palmrest44
11 Hinge Cover47
- Removing the Hinge Cover47
- Installing the Hinge Cover48
12 Wireless Local Area Network (WLAN) Card51
- Removing the Wireless Local Area Network (WLAN) Card51
- Installing the Wireless Local Area Network (WLAN) Card53
13 Display Assembly55
- Removing the Display Assembly55
- Installing the Display Assembly58
14 Display Bezel59
- Removing the Display Bezel59
- Installing the Display Bezel60
15 Display Panel63
- Removing the Display Panel63
- Installing the Display Panel66
16 Display Cable69
- Removing the Display Cable69
- Installing the Display Cable70
17 Display Brackets and Hinges71
- Removing the Display Brackets and Hinges71
- Installing the Display Brackets and Hinges73
18 Camera75
- Removing the Camera Module75
- Installing the Camera Module77
19 Camera Cable79
- Removing the Camera Cable79
- Installing the Camera Cable80
20 System Fan83
- Removing the System Fan83
- Installing the System Fan84
21 Expresscard Cable87
- Removing the Expresscard Cable87
- Installing the Expresscard Cable88
22 Expresscard Board89
- Removing the Expresscard Board89
- Installing the Expresscard Board90
23 LED Board91
- Removing the LED Board91
- Installing the LED Board92
24 System Board93
- Removing the System Board93
- Installing the System Board96
25 Heat Sink99
- Removing the Heatsink99
- Installing the Heatsink100
26 PCH Heatsink103
- Removing the PCH Heatsink103
- Installing the PCH Heatsink104
27 Processor107
- Removing the Processor107
- Installing the Processor108
28 Coin-Cell Battery111
- Removing the Coin-Cell Battery111
- Installing the Coin-Cell Battery112
29 DC-In Port115
- Removing the DC-In Port115
- Installing the DC-In Port116
30 Input/Output Board119
- Removing the Input/Output (I/O) Panel119
- Installing the Input/Output (I/O) Panel120
31 Sub-Woofer123
- Removing the Subwoofer123
- Installing the Subwoofer124
32 Speaker125
- Removing the Speakers125
- Installing the Speakers127
33 System Setup129
- System Setup Overview129
- System Setup Enter129
- System Setup Screens130
- System Setup Options131
34 Diagnostics135
- Device Status Lights135
- Battery Status Lights135
- Diagnostic Beep Codes135
35 Specifications137
36 Contacting Dell147
