Memory modules
Removing the memory modules
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
About this task

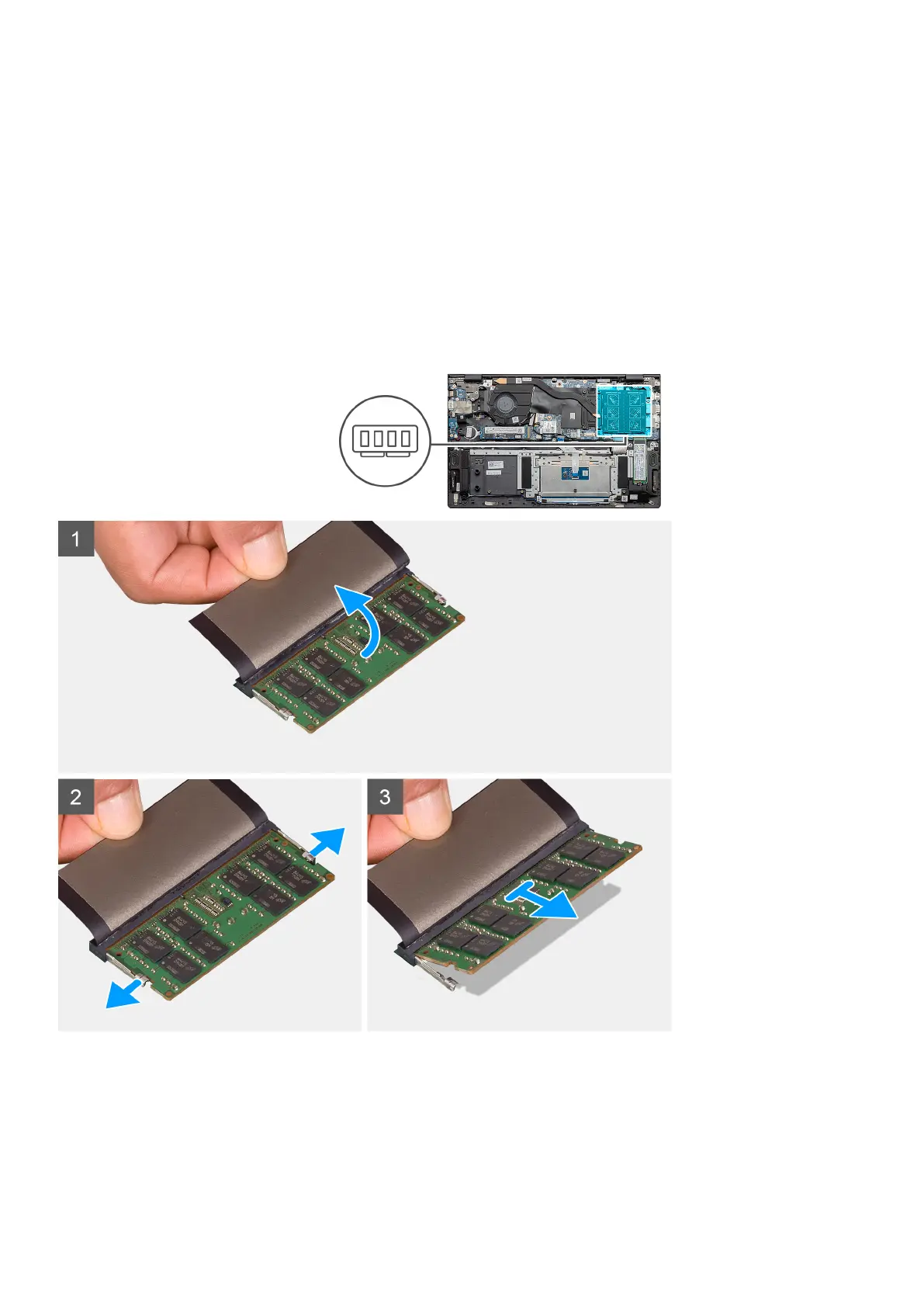

The figure indicates the location of the memory module and provides a visual representation of the removal procedure.
Steps
1. Lift the mylar covering the memory module.
2. Using your finger tips gently pry the retention clips away from the memory module until the memory module pops up.
3. Slide and remove the memory module off the memory module slot on the system board.
20
Disassembly and reassembly
