3. Follow the procedure in after working inside your computer.
Solid-state drive
Removing the M.2 2280 solid-state drive - SSD-1
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery.
NOTE: Both slots 1 and 2 support M.2 2230 and M.2 2280 SSD.
About this task

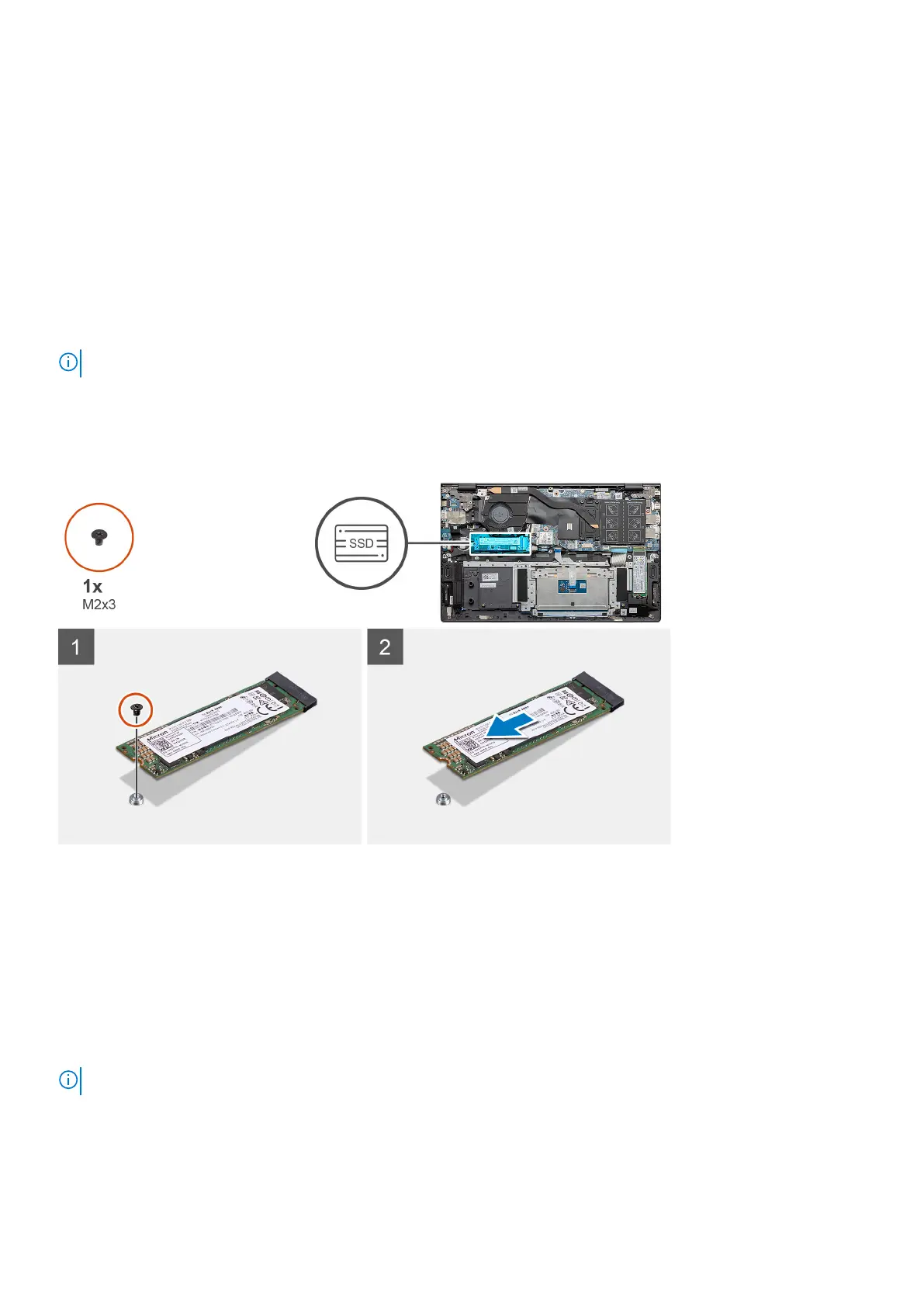

The figure indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the removal procedure from slot
1.
Steps
1. Remove the single screw (M2x3) that secures the solid-state drive to the palm-rest and keyboard assembly.
2. Slide and remove the solid-state drive module from the solid-state drive slot on the system board.
Installing the M.2 2280 solid-state drive - SSD-1
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE: Both slots 1 and 2 support M.2 2230 and M.2 2280 SSD.
About this task
The figure indicates the location of the solid-state drive bracket and provides a visual representation of the bracket alignment procedure
to accommodate the M.2 2280 solid-state drive from slot 1.
22
