6. Remove the memory modules.
7. Remove the SSD-1 (M.2 2280 or M.2 2230).
8. Remove the SSD-2.
9. Remove the system fan.
10. Remove the heat sink.
11. Remove the speakers.
12. Remove the display assembly.
13. Remove the I/O board.
14. Remove the power button with fingerprint reader.
15. Remove the DC-in port.
16. Remove the touchpad.
17. Remove the system board.
NOTE: The system board can be removed along with the heat sink.
About this task

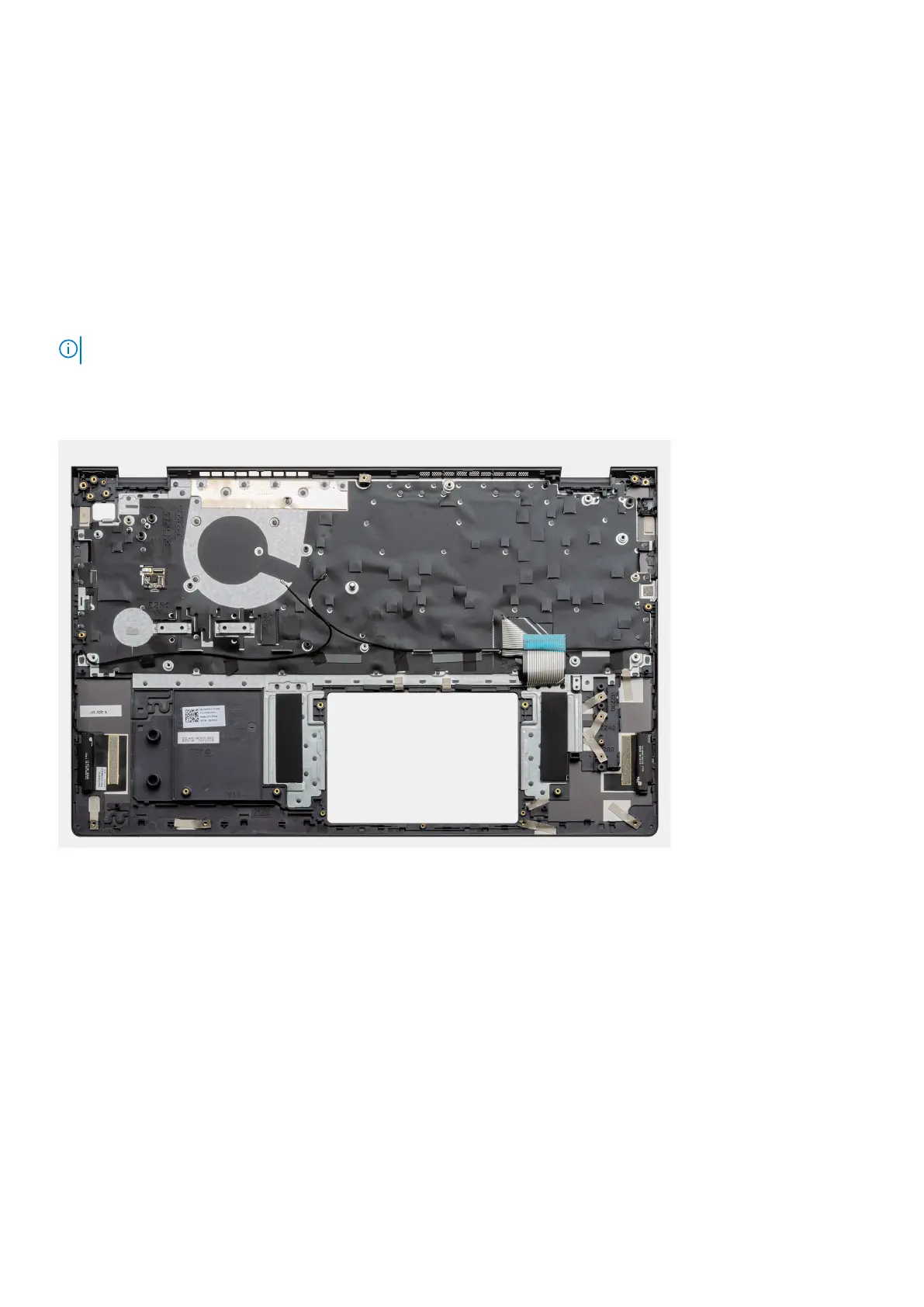

The figure indicates the location of the palm-rest and keyboard assembly and provides a visual representation of the removal procedure.
Steps
After performing the steps in the pre-requisites, we are left with the palm-rest and keyboard assembly.
Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the palm-rest and keyboard assembly and provides a visual representation of the installation procedure.
Disassembly and reassembly
