Installing the power button with optional finger reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

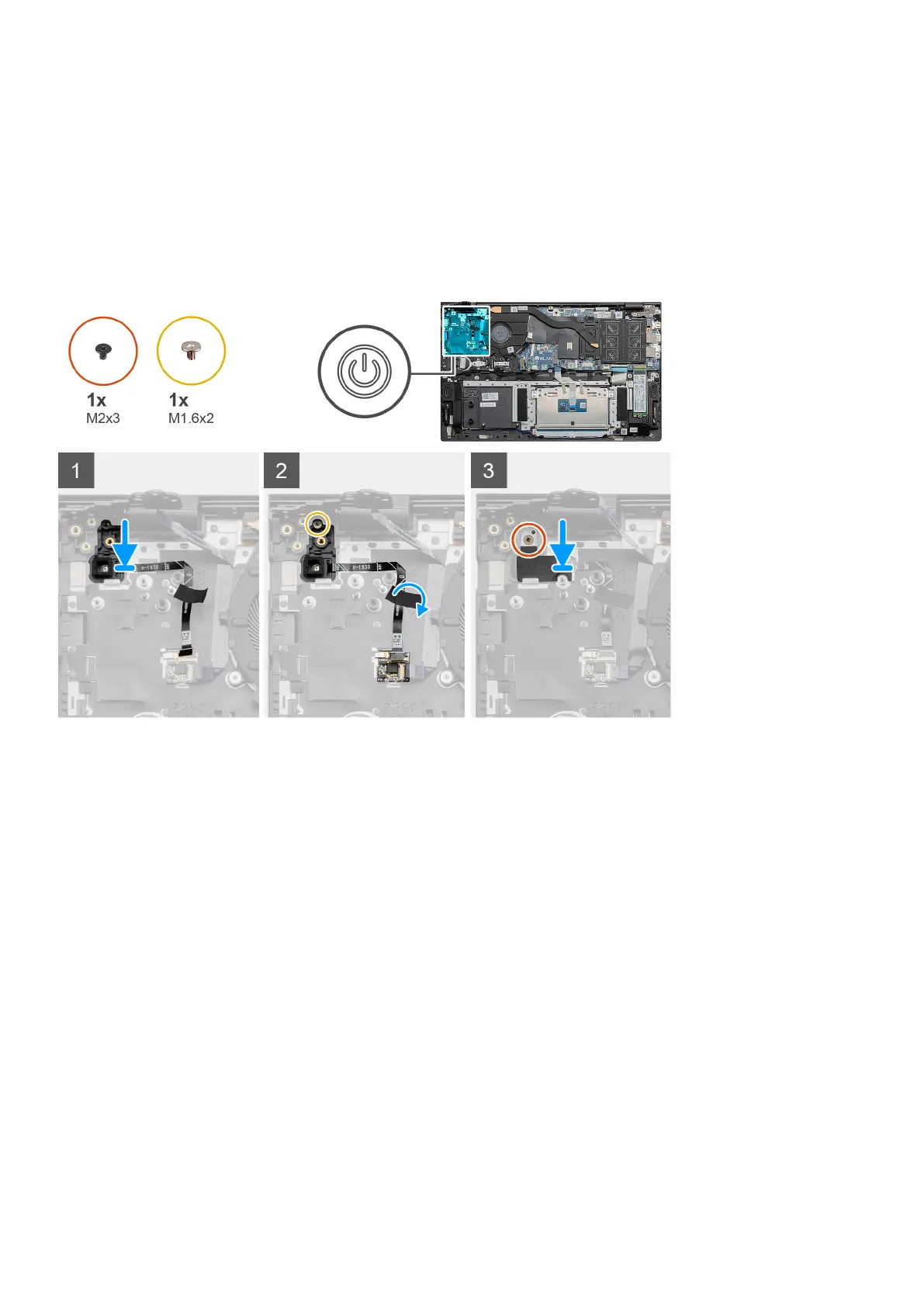

The figure indicates the location of the power button with fingerprint reader and provides a visual representation of the installation
procedure.
Steps
1. Using the alignment post, place the power button with optional fingerprint reader on the palm-rest and keyboard assembly.
2. Replace the single screw (M1.6x2) that secures the power button with optional fingerprint reader to the palm-rest and keyboard
assembly.
3. Plug the fingerprint reader cable into the connector on palm-rest and keyboard assembly.
4. Adhere the adhesive tape.
5. Place the fingerprint reader bracket, and replace the single screw (M2x3).
Next steps
1. Install the I/O board.
2. Install the system fan.
3. Install the WLAN card.
4. Install the battery.
5. Install the base cover .
6. Follow the procedure in after working inside your computer.
50
Disassembly and reassembly
