5 Remove the optical-drive bracket from the optical drive.
NOTE: Note the orientation of the optical-drive bracket so that you
can replace it correctly.

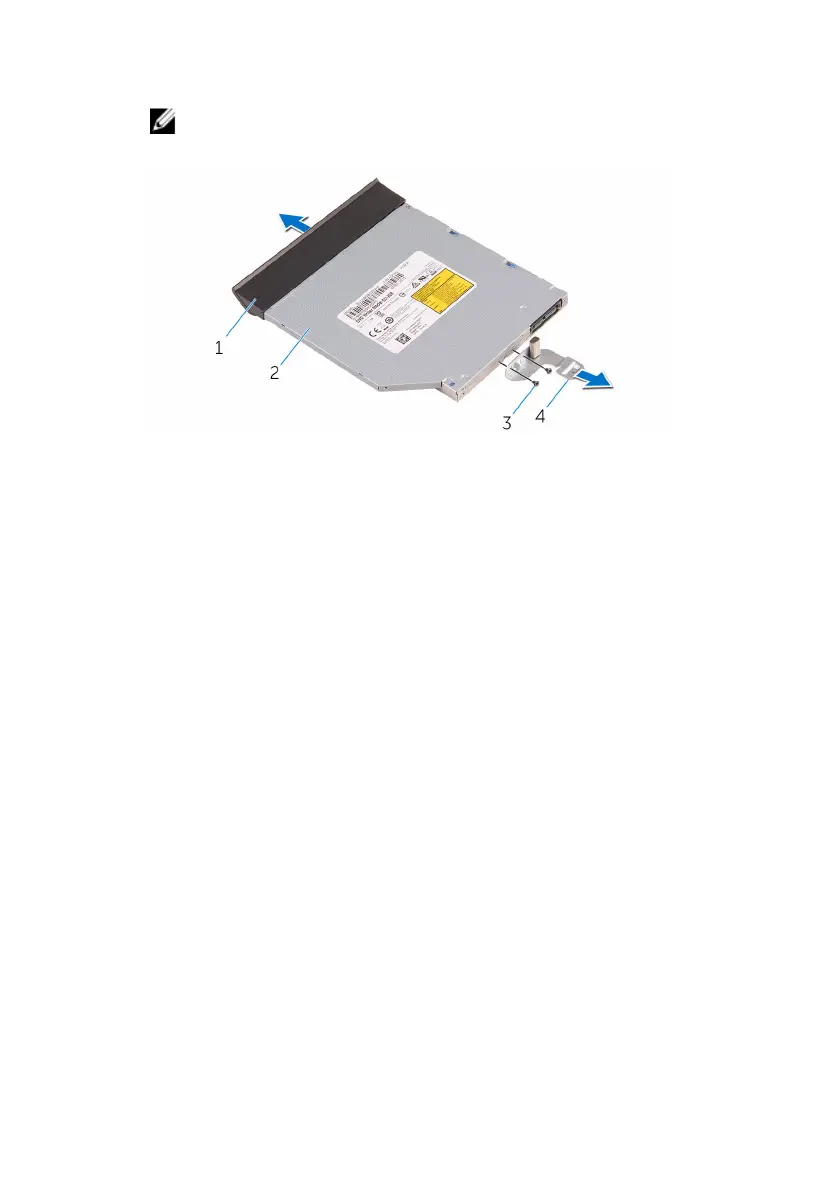

1 optical-drive bezel 2 optical drive
3 screws (2) 4 optical-drive bracket
21
