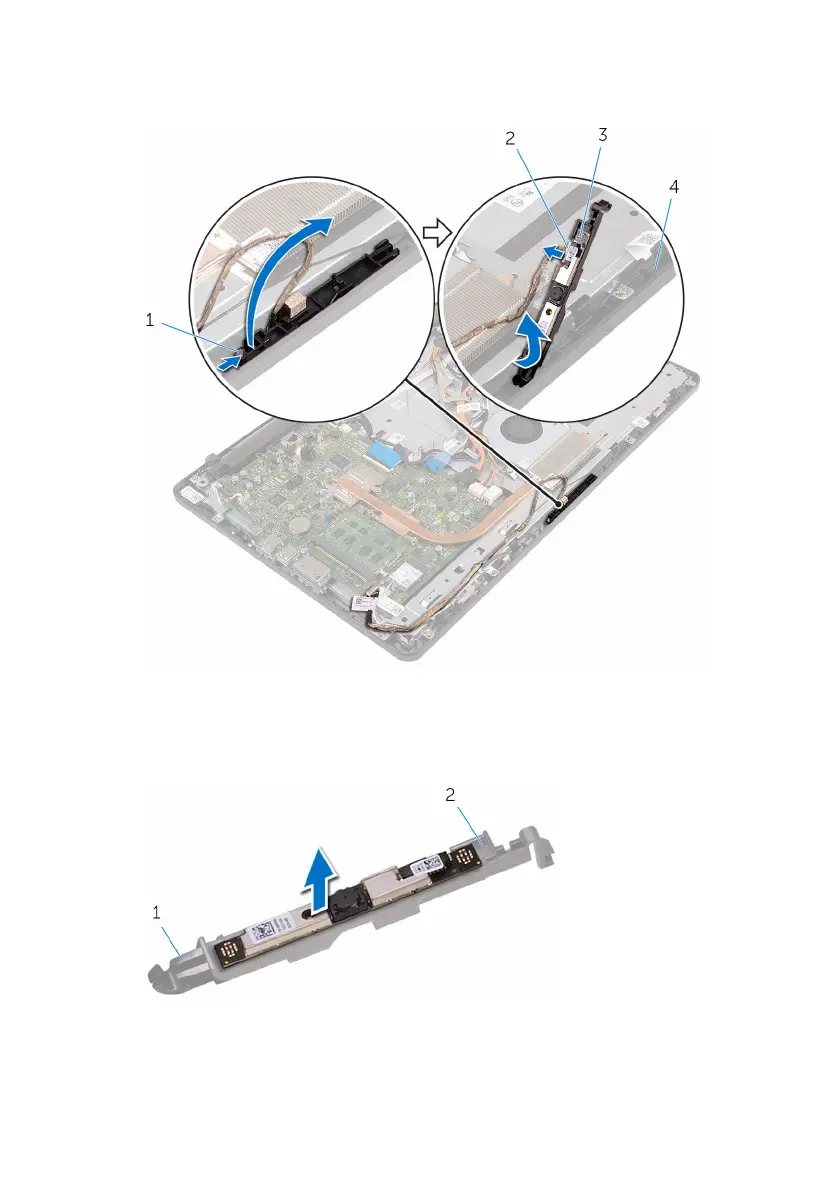

7 Release the camera frame from the tab on the display-assembly base and
lift it off.
1 securing clip 2 camera cable
3 camera frame 4 display-assembly base
8 Peel off the camera from the camera frame.
1 tab 2 camera frame
51
