● Phillips screwdriver #1
● Flat-head screwdriver
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

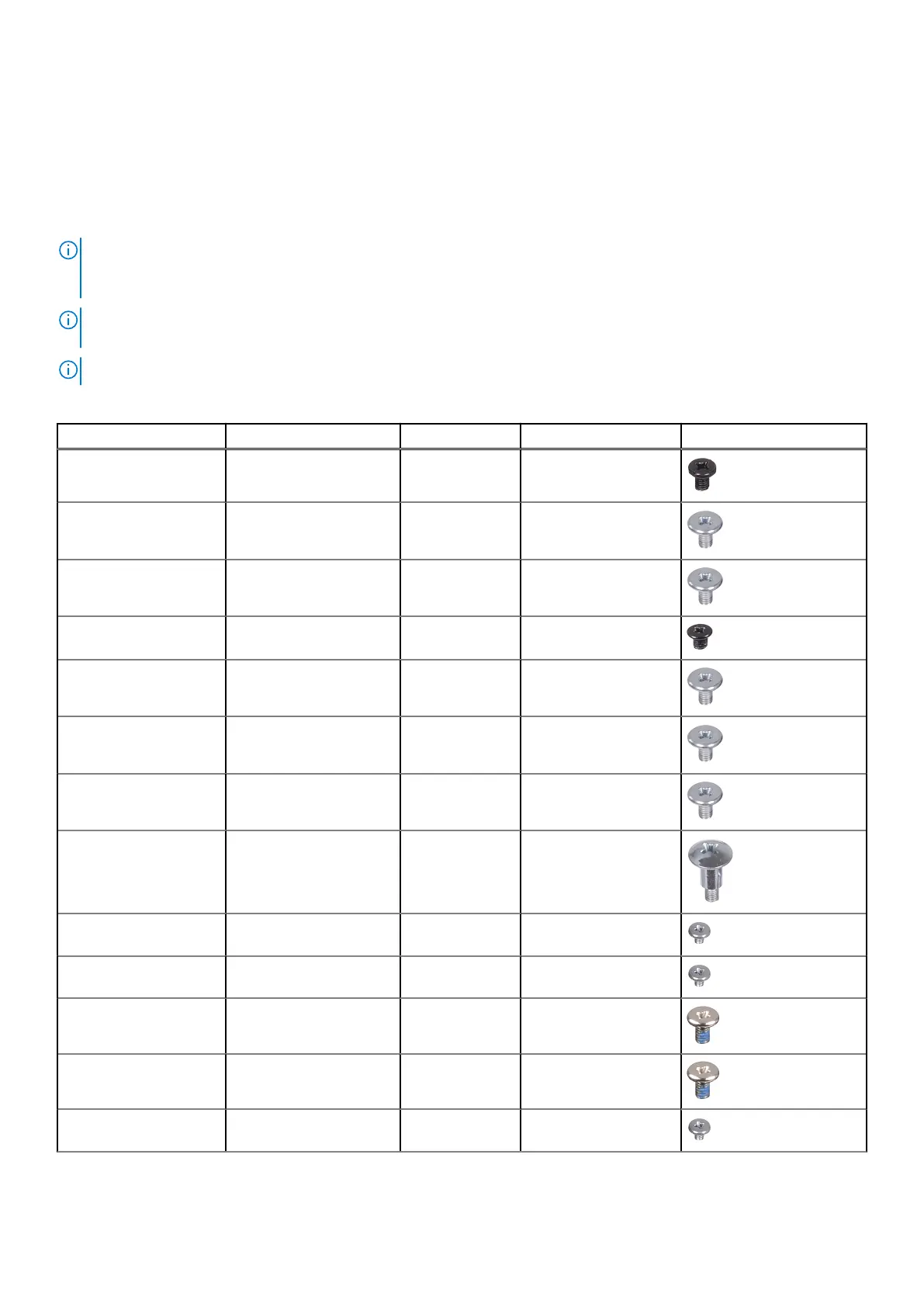

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Stand Display-assembly base M3x4 8
Bottom cover Display-assembly base M3 0.5x5 5
Hard-drive assembly Display-assembly base M3 0.5x5 2
Hard-drive bracket Hard drive M3x3.5 4
System-board shield Display-assembly base M3 0.5x5 4
Retractable-camera
assembly door
Base panel M3 0.5x5 2
Retractable-camera
bezel
Retractable-camera
bracket
M3 0.5x5 3
Speakers Display-assembly base M3 4+7.1xZN 6
Microphone modules Base panel M2x2.5 8
Fan Display-assembly base M2x2.5 3
Wireless-card shield System board M2x4 2
Wireless-card bracket Wireless card M2x4 1
Solid-state drive System board M2x2.5 1
10 Removing and installing components
