Steps

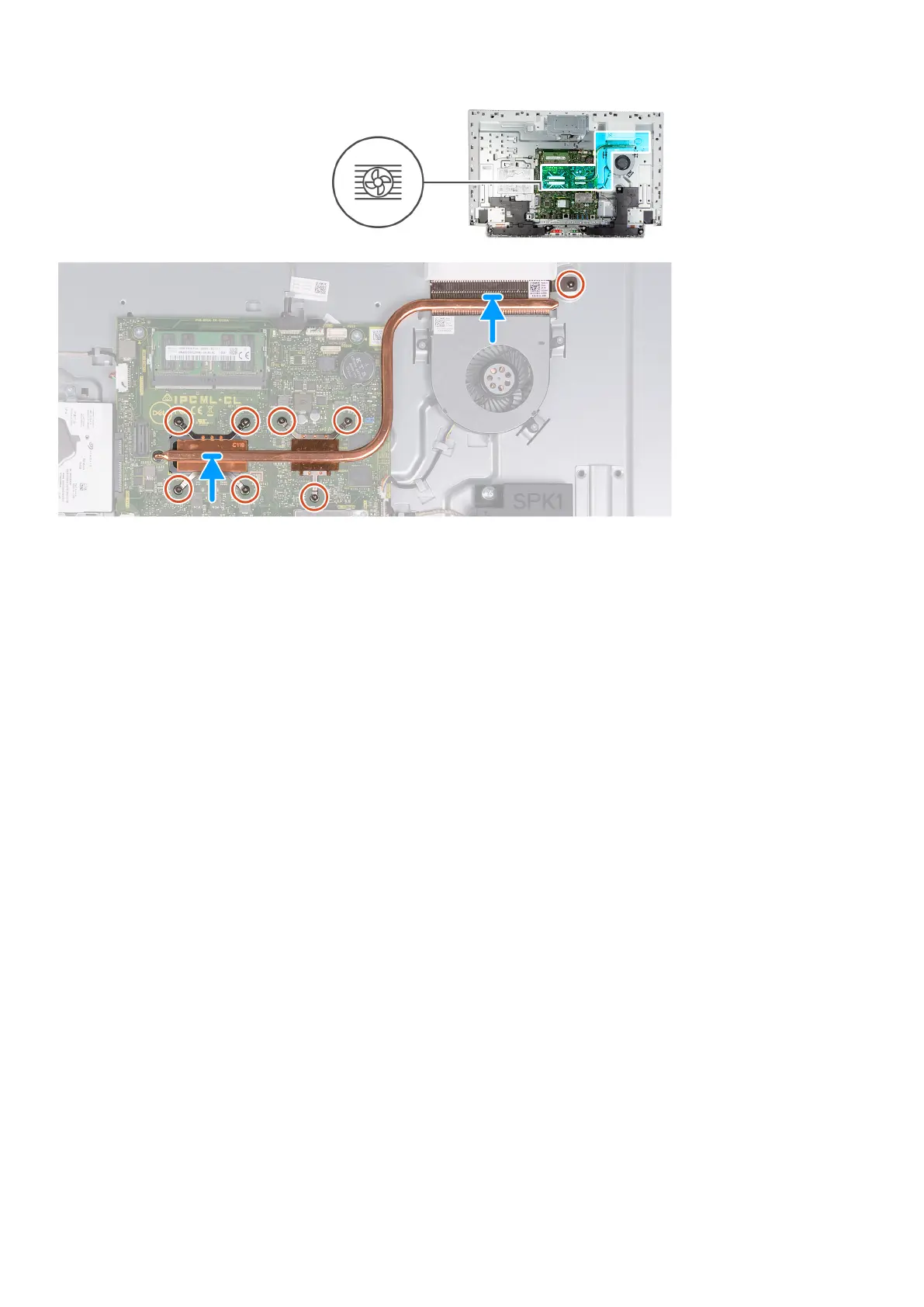

1. Align the screw holes on the heat sink with the screw holes on the system board and the display assembly base.
2. In sequential order (as indicated on the heat sink), tighten the eight captive screws that secure the heat sink to the system
board and display assembly base.
Next steps
1. Install the system-board shield.
2. Install the stand.
3. Install the bottom cover.
4. Install the back cover.
5. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
3. Remove the bottom cover.
4. Remove the stand.
5. Remove the system-board shield.
About this task
The following image indicates the location of the wireless card and provides a visual representation of the removal procedure.
Removing and installing components
27
