Steps

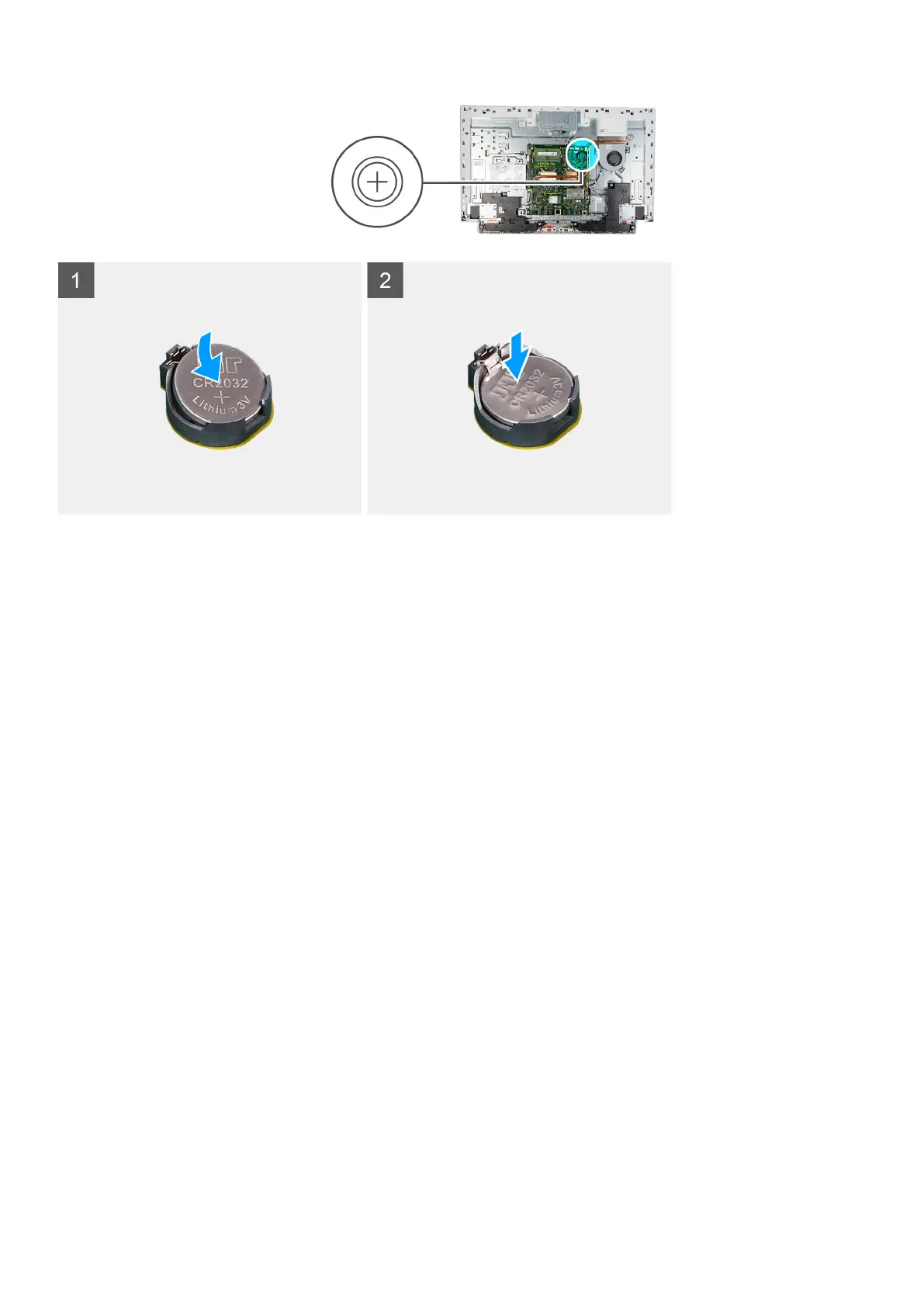

With the positive-side facing up, insert the coin-cell battery into the battery socket on the system board and snap the battery
into place.
Next steps
1. Install the system-board shield.
2. Install the stand.
3. Install the bottom cover.
4. Install the back cover.
5. Follow the procedure in After working inside your computer.
Heat sink
Removing the heat sink
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
3. Remove the bottom cover.
4. Remove the stand.
5. Remove the system-board shield.
About this task
The following image indicates the location of the heat sink and provides a visual representation of the removal procedure.
Removing and installing components
25
