Steps

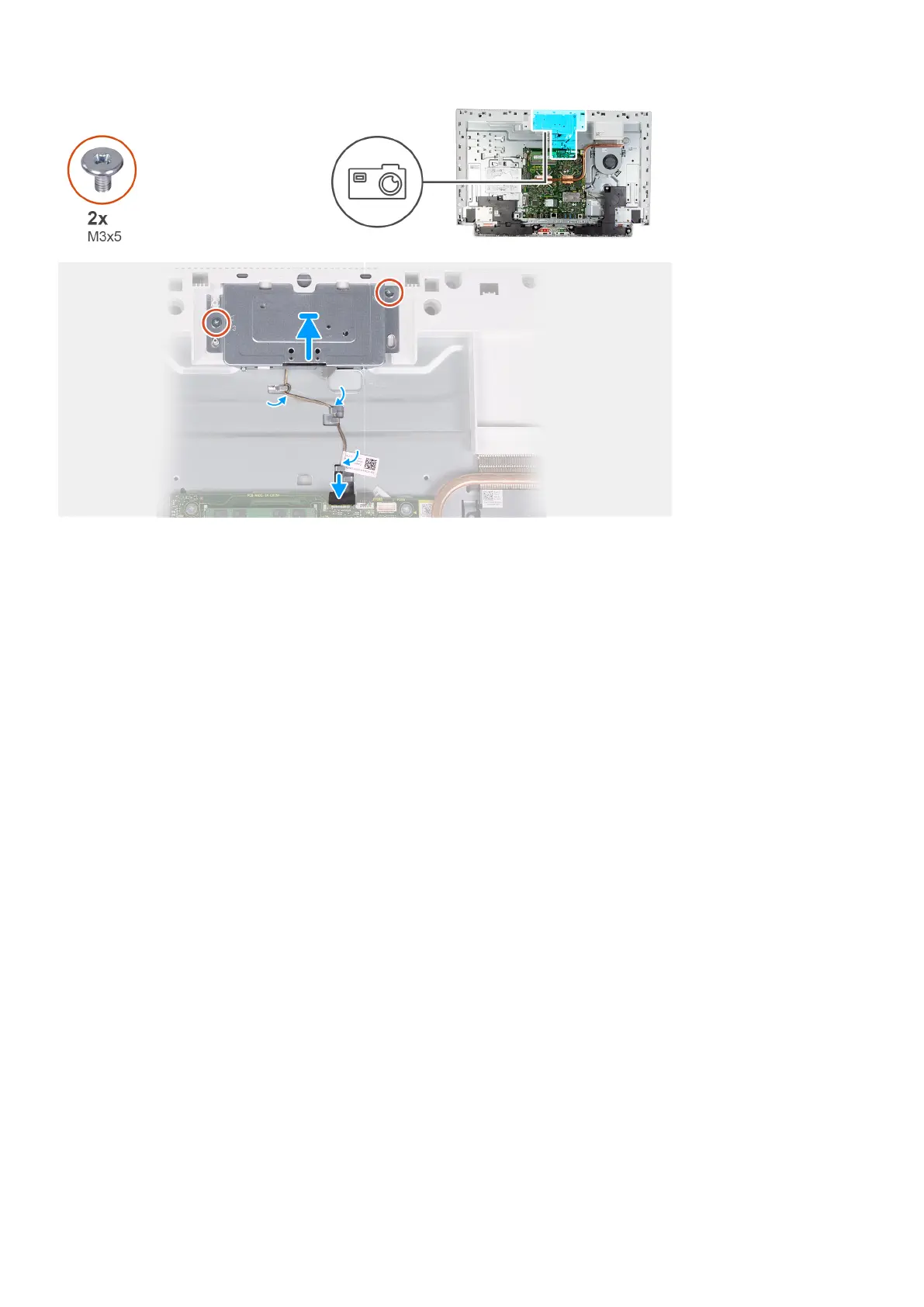

1. Slide and place the retractable-camera assembly on the base panel.
2. Replace the two screws (M3x5) that secure the retractable-camera assembly to the base panel.
3. Route the camera cable through the routing guides on the display-assembly base.
4. Connect the camera cable to the system board.
Next steps
1. Install the system-board shield.
2. Install the stand.
3. Install the bottom cover.
4. Install the back cover.
5. Follow the procedure in After working inside your computer.
Power-button board
Removing the power-button board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
3. Remove the bottom cover.
4. Remove the stand.
5. Remove the system-board shield.
6. Remove the speakers.
About this task
The following image indicates the location of the power-button board and provides a visual representation of the removal
procedure.
