About this task

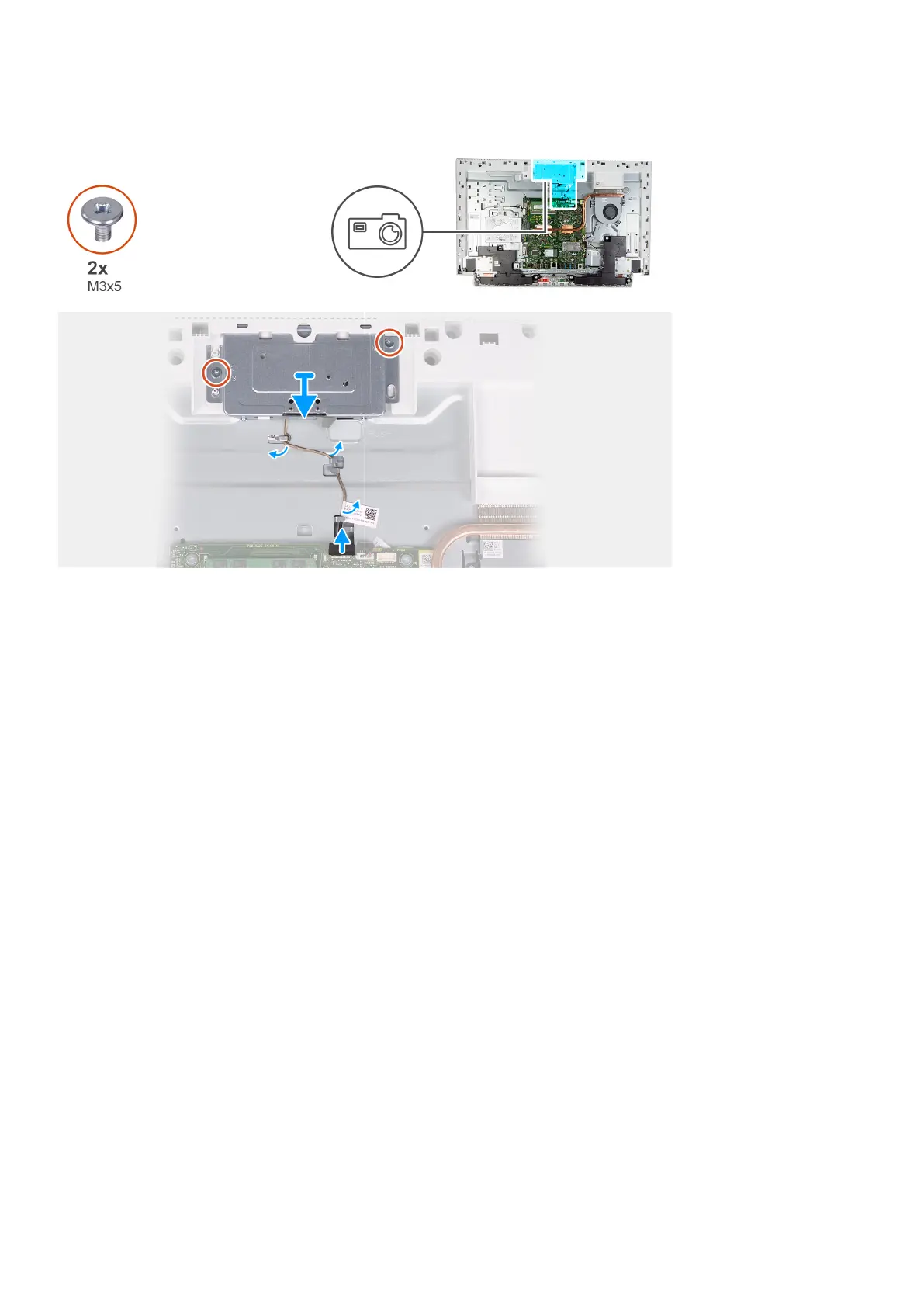

The following image indicates the location of the camera and provides a visual representation of the removal procedure.
Steps
1. Disconnect the camera cable from the system board.
2. Remove the camera cable from the routing guides on the display-assembly base.
3. Remove the two screws (M3x5) that secure the retractable-camera assembly to the base panel.
4. Remove the retractable-camera assembly door from the base panel.
Installing the camera
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the camera and provides a visual representation of the installation procedure.
Removing and installing components
43
