Steps

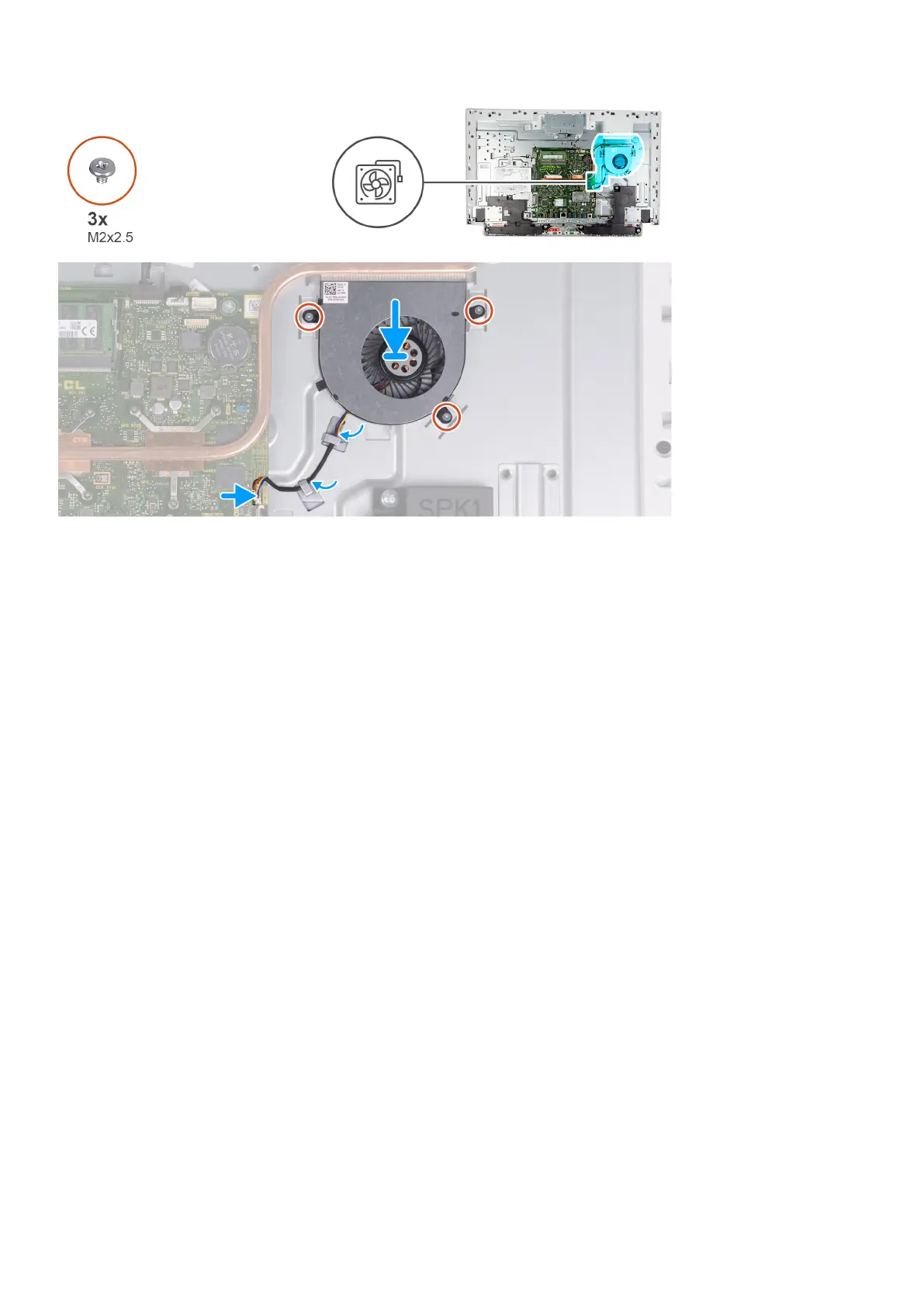

1. Align the screw holes on the fan with the screw holes on the display-assembly base.
2. Replace the three screws (M2x2.5) that secure the fan to the display-assembly base.
3. Route the fan cable through the routing guides on the display-assembly base.
4. Connect the fan cable to the system board.
Next steps
1. Install the system-board shield.
2. Install the stand.
3. Install the bottom cover.
4. Install the back cover.
5. Follow the procedure in After working inside your computer.
Antennas
Removing the antennas
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
3. Remove the bottom cover.
4. Remove the stand.
5. Remove the system-board shield.
6. Remove the wireless card.
7. Remove the speakers.
About this task
The following image indicates the location of the antennas and provides a visual representation of the removal procedure.
