Trigno™ Wireless Biofeedback System
- 13 -
Base Station Features
Each Base Station is equipped with the following features:
• high speed USB communication with PC
• recharging cradle for 16 sensors
• 64-channel analog outputs
• ± 5V analog output range
• detachable antenna
• convenient carry case design
• communication & power feedback LEDs
• full trigger capability (Start/Stop, Input/Output)
• Medical Grade Universal Power Supply.

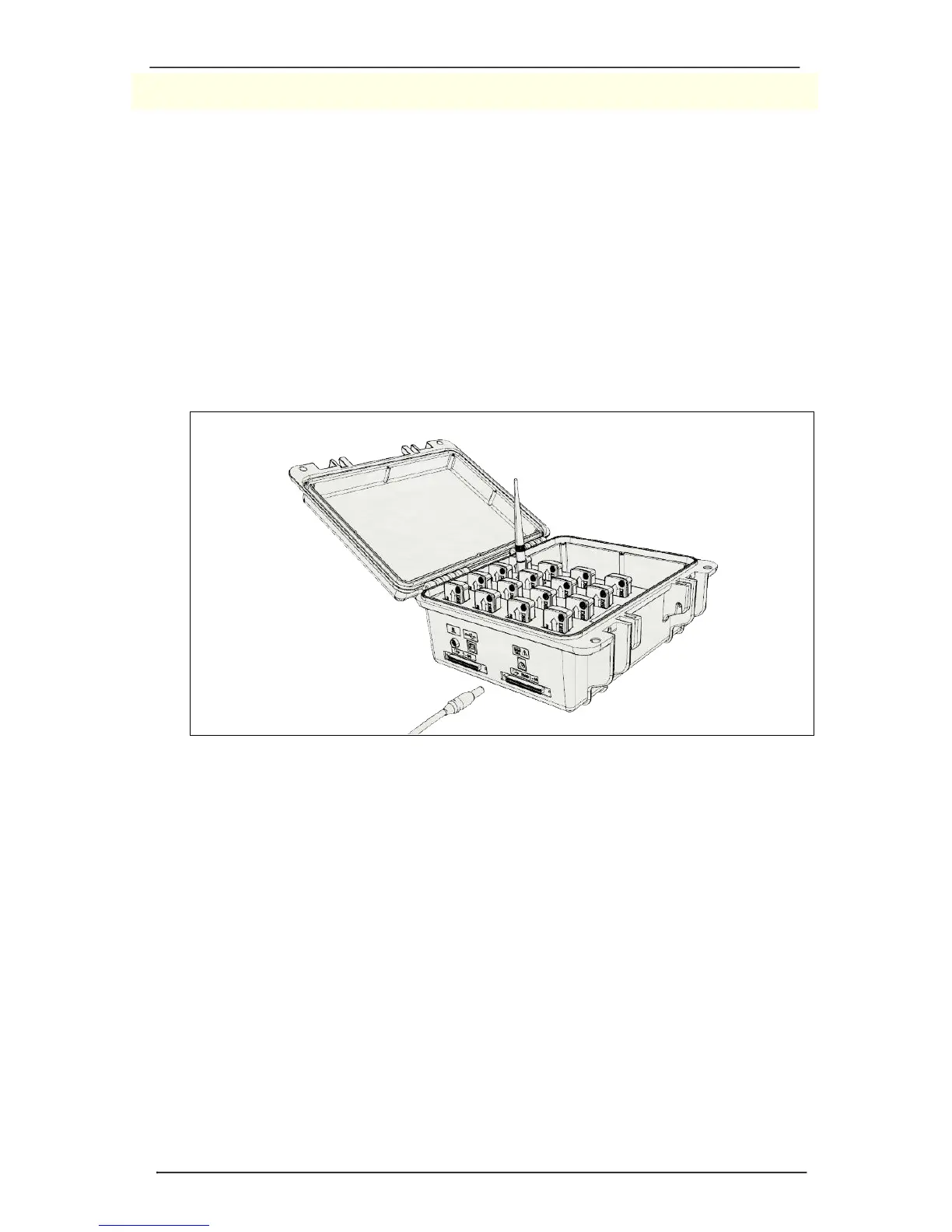

Figure 1: Trigno System Base Station for sensor recharging and communication.
Recharging Cradle: The Trigno Base Station is equipped with 16 charge pockets
which can accommodate Trigno sensors for charging. The pockets are keyed so
that sensors can only be inserted in one orientation.
Medical Power Supply: The system includes a universal 12V medical grade
power supply for operating the base station. International plug adapters are
included for connection to local mains power requirements.
USB Communication: The Base Station compiles data received from the active
wireless sensors and transfers it over a USB 2.0 compliant connection to a
Windows PC.
Analog Outputs (If Equipped): The Base Station is equipped with two 68-
position analog output connectors that can be used to interface with analog
data acquisition systems. Biofeedback signals acquired by the wireless sensors
are made available as analog signals spanning a ±5V range.
