Trigno™ Wireless Biofeedback System
- 23 -
Using the Analog Outputs (if Equipped)
The Trigno System provides simultaneous analog signal reconstruction of data
being detected by all active sensors. These signals are made available on the
68-pin connectors located on the Base Station and range cover the +/-5V range.
Analog outputs are engaged through software and are only available for specific
sensor sampling configurations. Refer to software user-guides for details.

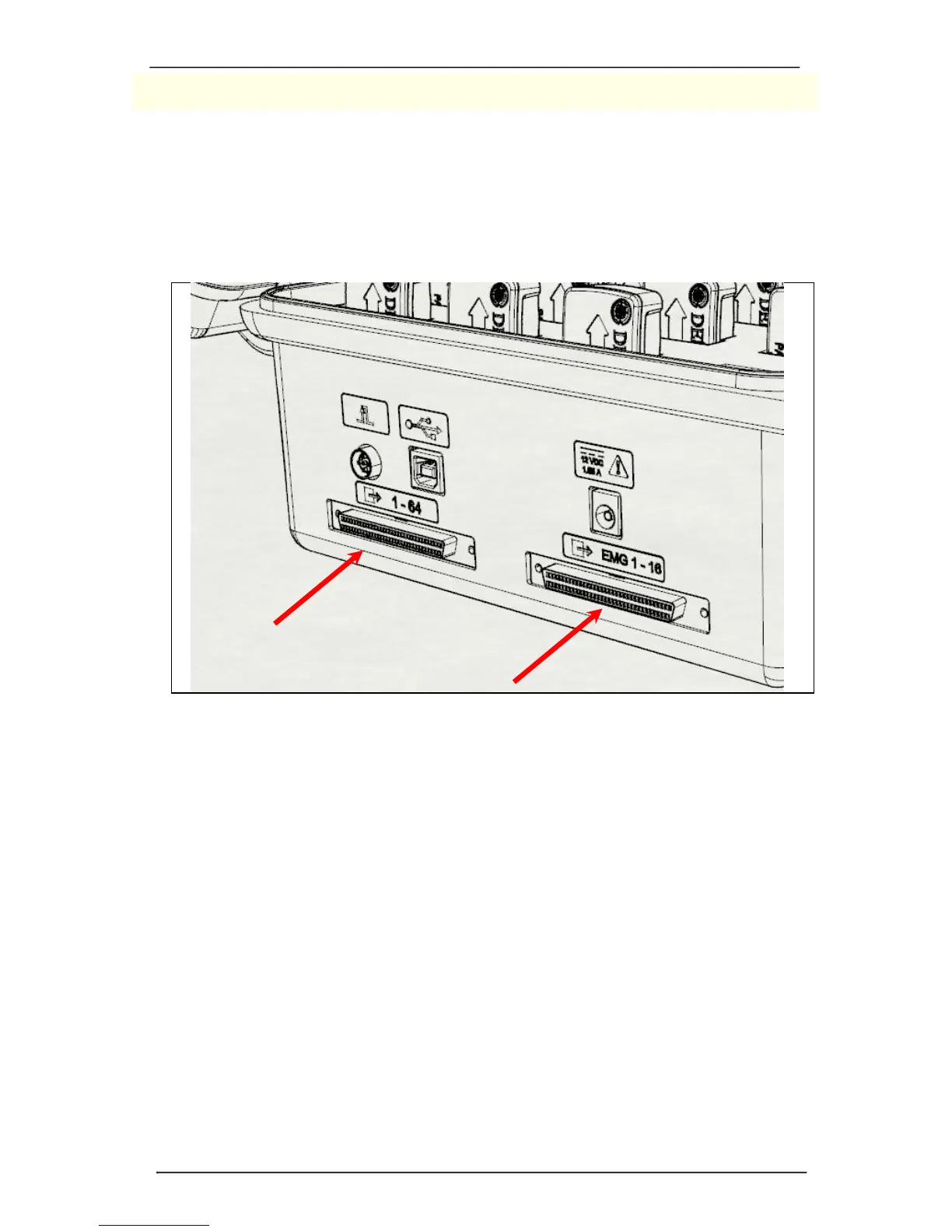

Figure 7: Analog Output Connectors on Base Station.
Analog Output Connectors
Channels 1-16, EMG Signals
The pinout of this connector replicates the pinout of the Bagnoli desktop EMG
systems to facilitate connectivity between shared equipment for the Channels
1-16. This connector is a 1.27mm, PCS series connector and is compatible
National Instruments data acquisition modules.
Channels 1-64, all Signals
This connector makes available all 64 analog output channels in the 68-pin
connector. This connector is a 1.27mm, PCS series connector and is compatible
National Instruments data acquisition modules.
