Trigno™ Wireless Biofeedback System
- 27 -

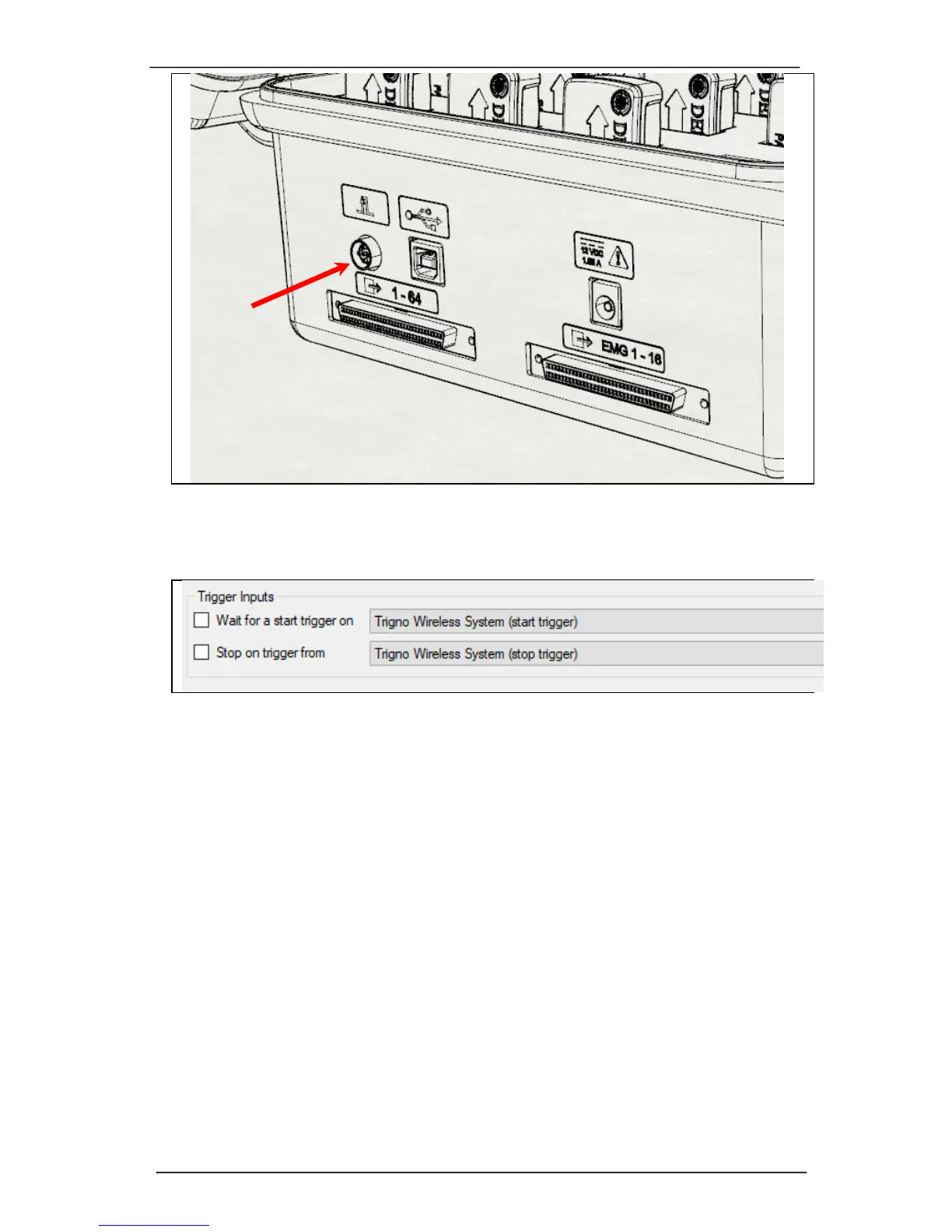

Figure 11: Trigger Module Connector on Base Station.
Triggers must be armed through software options as indicated in the example
screenshot below.
Figure 12: Arming the start and stop triggers in software for external start/stop control
of data acquisition.
