Amplon RT Series
Chapter 7 : Communication Interfaces
NOTE :
The UPS can still function properly without making the connections
below.
The UPS’s communication interfaces include an RS-232 port, a USB port, a smart
slot and an REPO port. Please refer to 5HDU3DQHO for their locations. You can
XVHDOORIWKHFRPPXQLFDWLRQLQWHUIDFHVDWWKHVDPHWLPHDQGLWZRQ¶WLQÀXHQFHHDFK
interface’s function.

z

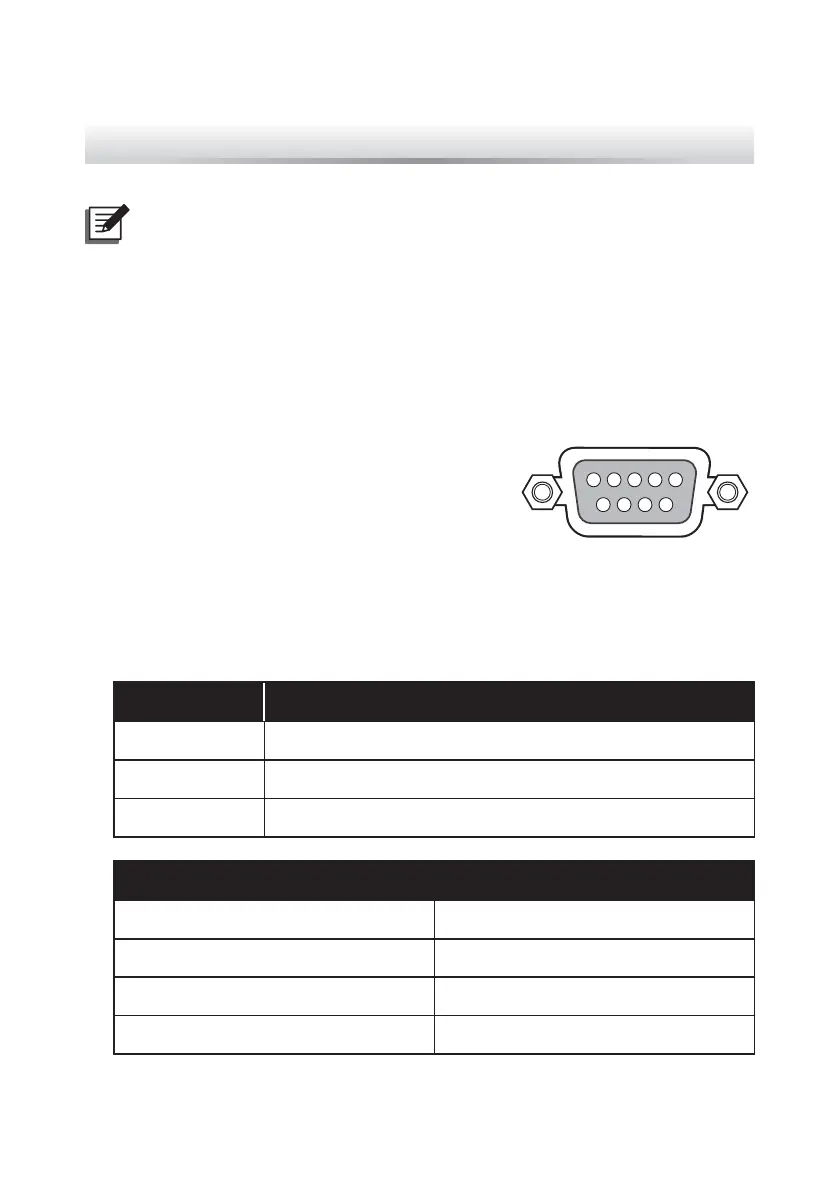

RS-232 Port
You can use an RS-232 cable (not provided)
to connect the UPS with a computer and
use the included CD to install the UPSentry
2012 software to record UPS power events,
monitor UPS status, adjust transfer voltage,
set up alarms, and shut down the UPS
safely in a network environment. The pin
DVVLJQPHQWRIWKH56SRUWLVGH¿QHGDV
follows:
54321
6
7
89
)LJXUH563RUW
Pin RS-232 Pin Assignment Description
2 UPS TXD (Typical RS-232 level)
3 UPS RXD (Typical RS-232 level)
5GND
Communication Setting for RS-232 Port
Baud Rate 2400
Data Length 8 bits
Stop Bit 1 bit
Parity None
