Amplon RT Series

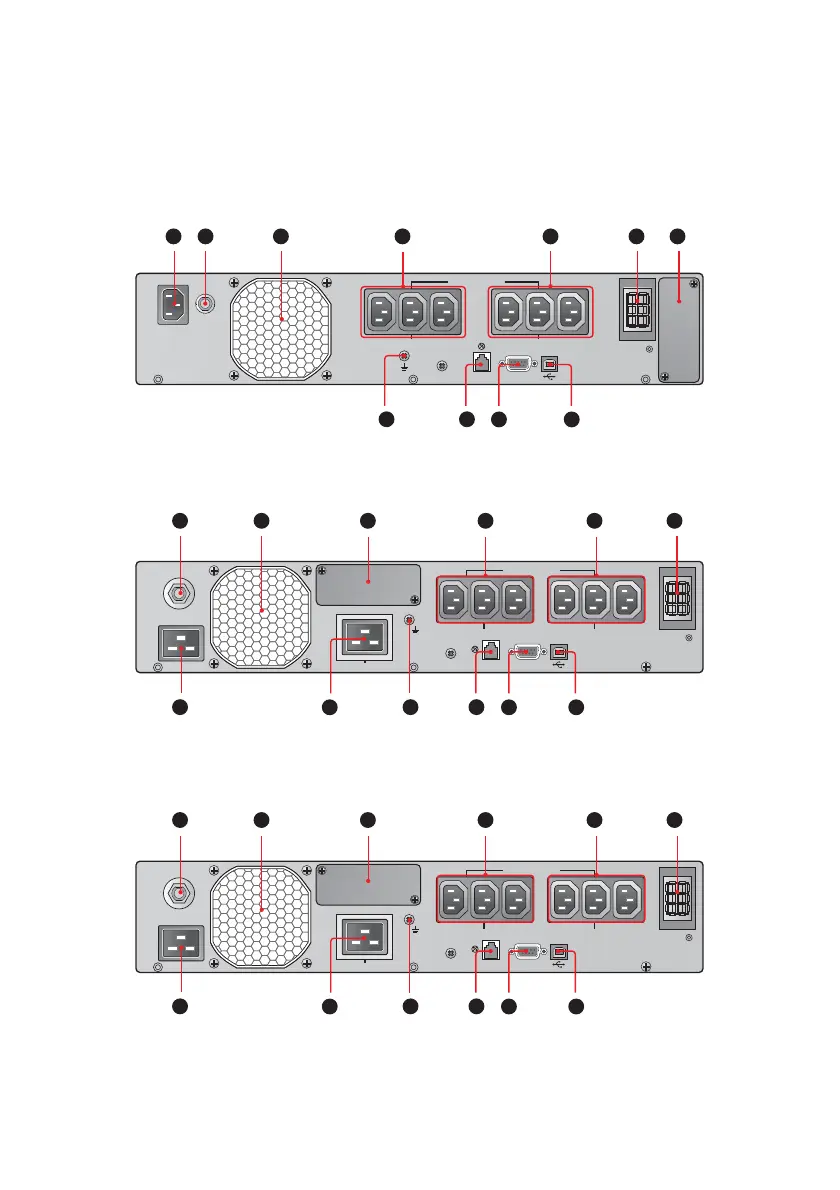

2.6 Rear Panel

z
1 kVA: UPS102R2RT2B035/ UPS102R2RT2B0B6/
UPS102R2RT2B0BB/ UPS102R2RT2B0BC
INPUT
INPUT
BREAKER
8A
250Vac
SMART SLOT
24V DC
40A
LOAD 1 LOAD 2
TOTAL OUTPUT Imax. 4.5A
REPO
RS-232
WARNING:
CONNECT 24 VDC BATTERY
SYSTEMS ONLY
CONNECTING OTHER
SYSTEMS WILL VOID WARRANTY
7 1 2 4 5
6
3
8 9
10 11

z
2 kVA: UPS202R2RT2B035/ UPS202R2RT2B0B6/
UPS202R2RT2B0BB/ UPS202R2RT2B0BC
SMART SLOT
48V DC
40A
INPUT
BREAKER
15A
250Vac
INPUT
REPO RS-232
LOAD 1 LOAD 2
TOTAL OUTPUT Imax. 9A
OUTPUT Imax. 9A
WARNING:
CONNECT 48 VDC BATTERY
SYSTEMS ONLY
CONNECTING OTHER
SYSTEMS WILL VOID WARRANTY
1 2 3 4 5
6
7
8 9
10 1112

z
3 kVA: UPS302R2RT2B035/ UPS302R2RT2B0B6/
UPS302R2RT2B0BB/ UPS302R2RT2B0BC
SMART SLOT
72V DC
40A
INPUT
BREAKER
25A
250Vac
INPUT
REPO RS-232
LOAD 1 LOAD 2
TOTAL OUTPUT Imax. 13.5A
OUTPUT Imax. 13.5A
WARNING:
CONNECT 72 VDC BATTERY
SYSTEMS ONLY
CONNECTING OTHER
SYSTEMS WILL VOID WARRANTY
1 2 3 4 5
6
7
8 9
10 1112
