Delta-q IC650 Troubleshoot Manual

ELECTRICAL INSTALATION
23

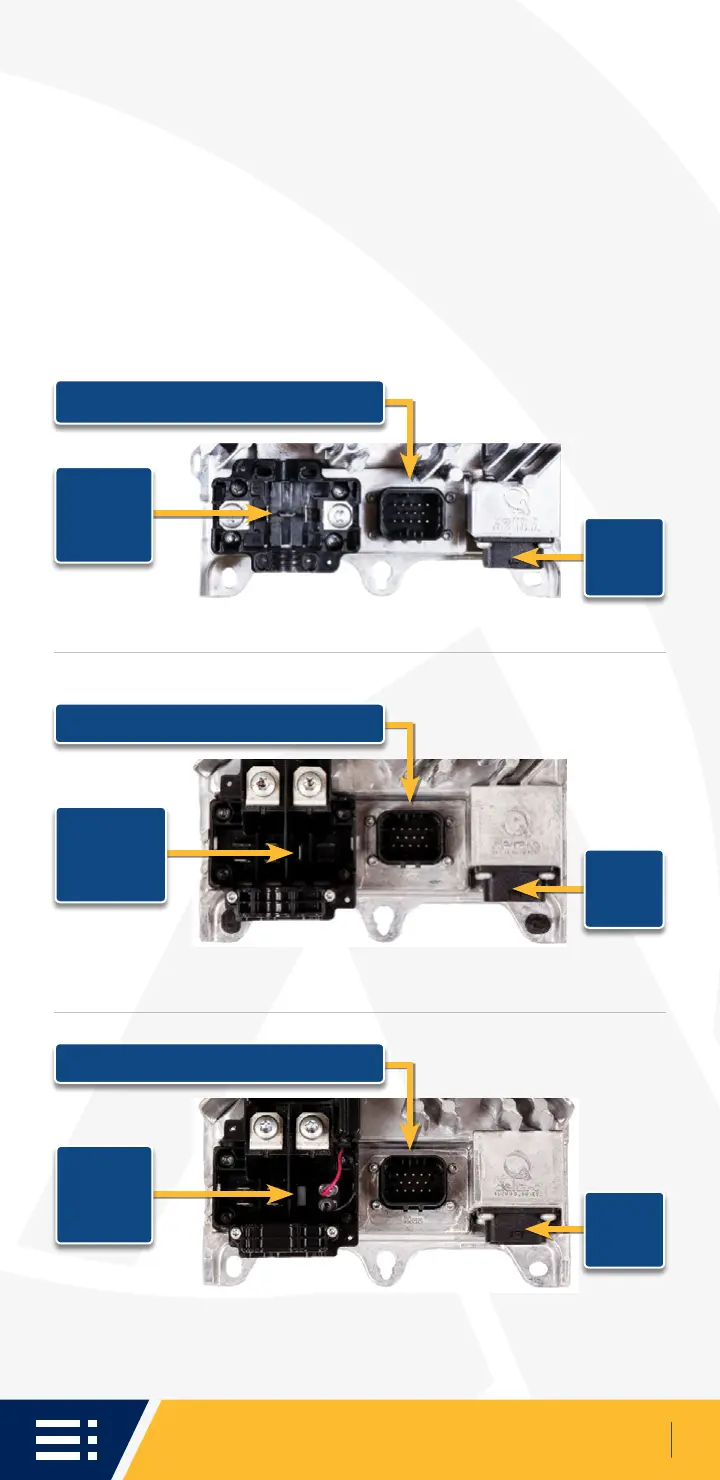

IC650 COMM Model Rear Panel
IC900 COMM Model Rear Panel
IC1200 COMM Model Rear Panel
AC
Input
AC
Input
AC
Input
DC
Output
Block
DC
Output
Block
DC
Output
Block
Signals and Control
Signals and Control
Signals and Control
The charger has either two or three
connectors on the rear panel depending
on the model. The COMM model with all
connectors is shown below. The BASE
model does not have a Signals & Control
Connector.

Delta-q IC650 Specifications

General

Input Voltage	85-265 VAC
Input Frequency	45-65 Hz
Output Power	650 W
Efficiency	93%
Storage Temperature	-40°C to +85°C
Protection	Over-voltage, Over-temperature, Short-circuit
Communication	CAN bus
Cooling Method	Convection
Output Voltage	12-48 VDC
