Delta-q IC650 Troubleshoot Manual

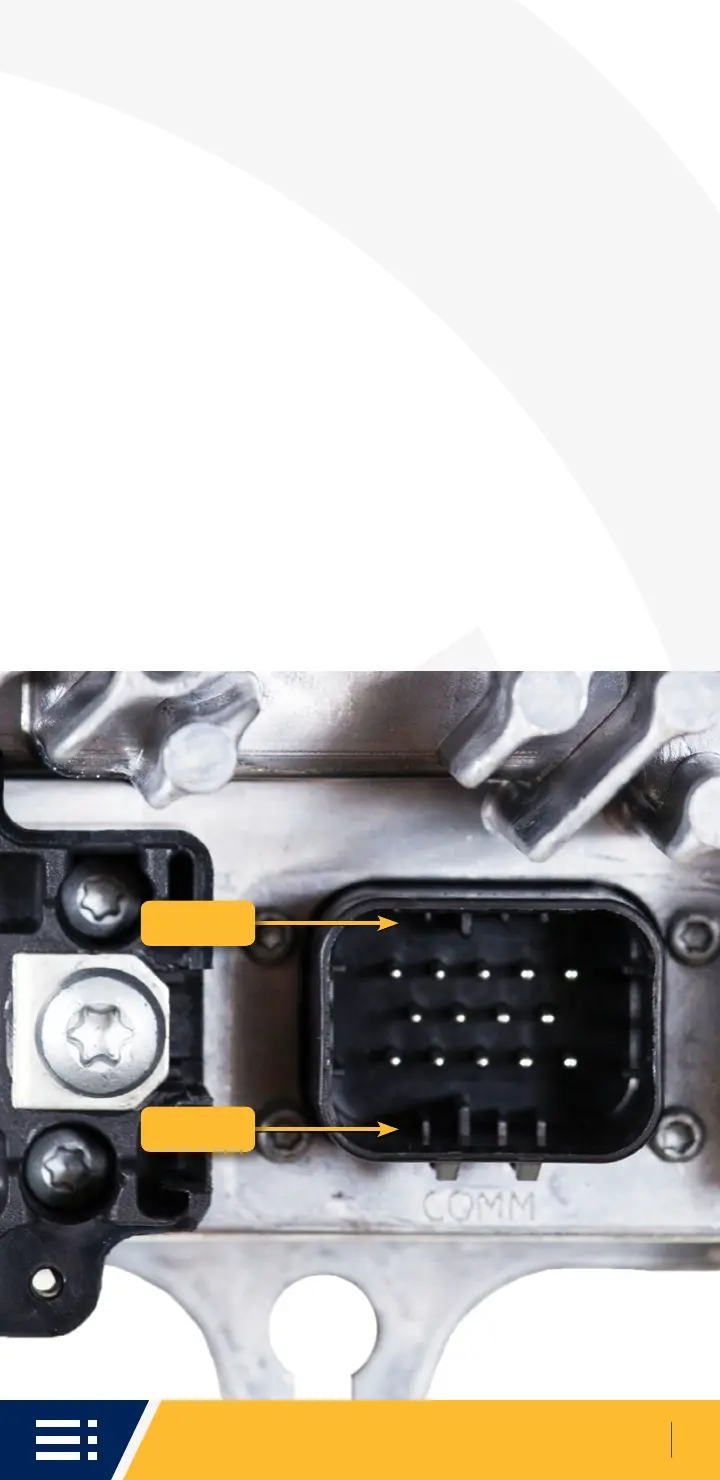

Signals & Control Connector
45
Keying
Keying
Recommended Mating Connector PN:
TE AMPSeal 776273-1
Sockets:
TE 770854-1
Note: Pin numbers 1, 5, 6, 9, 10, and 14 are
labeled on the connector’s inside face, next
to the pins. On the mating plug, the same
pin numbers are embossed on the top of the
body. The recommended wire for all pins
is 16-20 AWG (1.0-0.50 mm2), 300V rated
(UL3266 or equivalent). Wire colours listed
are suggestions only.

Delta-q IC650 Specifications

General

Input Voltage	85-265 VAC
Input Frequency	45-65 Hz
Output Power	650 W
Efficiency	93%
Storage Temperature	-40°C to +85°C
Protection	Over-voltage, Over-temperature, Short-circuit
Communication	CAN bus
Cooling Method	Convection
Output Voltage	12-48 VDC
